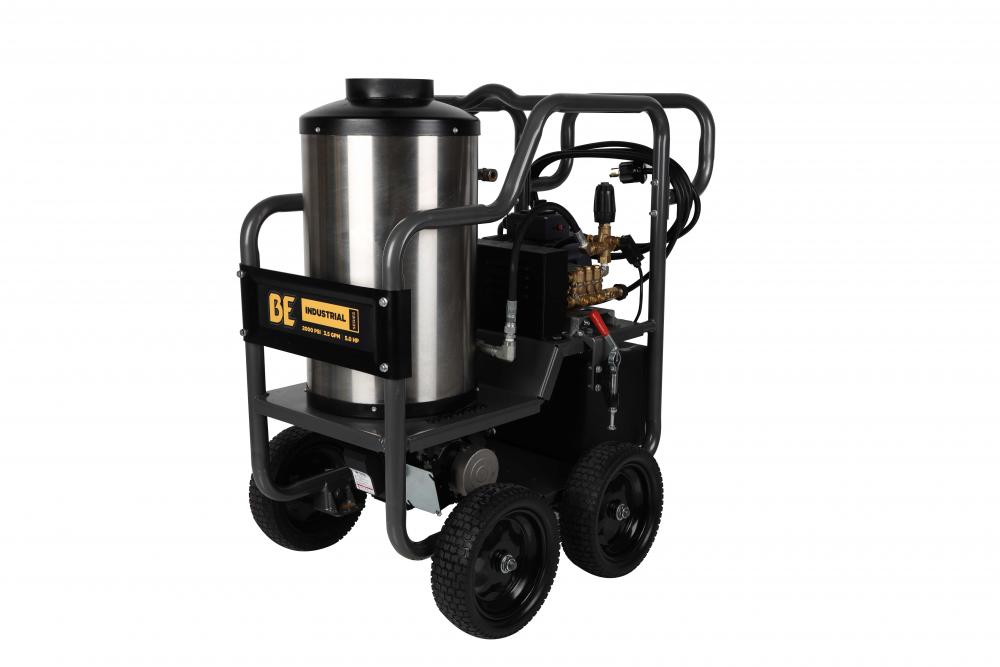

2,000 PSI - 3.5 GPM HOT WATER PRESSURE WASHER WITH TECHTOP MOTOR AND AR TRIPLEX PUMP
Call For Price
- Part Number: HW205EBA
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Heating coil has a stainless steel wrap protecting the heavy duty 1/2" schedule 80 carbon steel cold rolled pipe.
Specifications
Details
Industrial Category:
Sports and Outdoor Equipment
Industrial Subcategory:
Pressure Washers and Accessories
Industrial Subtype:
Electric Pressure Washers
ACCESSORIES FITTINGS::
QUICK CONNECT
ACCESSORIES GUN WAND::
36" Insulated
ACCESSORIES HOSE TYPE::
50' Double Steel Braided
ACCESSORIES NOZZLES::
0°, 15°, 25°, 40° And Soaper
Box L x W x H:
45" x 33" x 52"
Box WEIGHT:
480
BURNER Coil Tube Length:
80’ LENGTH OF TUBING
BURNER Fuel Type:
Diesel Fired
BURNER Heating Coil:
1/2” COLD ROLLED STEEL
BURNER Max Temp:
89°C/193°F
BURNER THERMOSTAT:
ON/OFF AND ADJUSTABLE
Frame MATERIALS::
Powder Coated Steel
GPM:
3.5
Motor AMP DRAW::
30
Motor AUTO START/STOP:
Yes
Motor CORD LENGTH:
25'
Motor HP::
5
Motor MODEL::
TechTop
Motor PHASE:
Single
Motor PLUG TYPE::
6-30P
Motor VOLTAGE::
230
PSI:
2,000
Pump OIL TYPE::
30W NON-DETERGENT
Pump SOAP SYSTEM::
Adjustable Injector
Pump TYPE::
TRIPLEX
PUMP::
AR RCA35G25N
Unit L x W x H:
44" x 27" x 42"
Unit NET WEIGHT::
430
Unloader TYPE::
External
UPC::
777987342880
Warranty ACCESSORIES::
90 DAYS
Warranty ENGINE::
2 YEARS
Warranty FRAME::
LIFETIME
WARRANTY HEAT COIL::
3 YEARS
Warranty PUMP::
5 YEARS
Other Details
5.0 HP TECHTOP motor delivers energy efficiency and reliability suited for industrial applications.
A lift point is built into the frame to allow the use of a crane to lift it onto a truck or trailer.
Belt drive system provides longest pump life possible by lowering its heat, vibration and RPM.
Commercial grade accessories included are a 50 foot high-pressure hose, spray gun wand assembly, and five spray nozzles.
External unloader provides superior cooling and versatility to further enhance pump life.
Industrial AR triplex pump features die-cast body, forged brass manifold, ceramic coated plungers and thermal release valve.
Powder coated steel frame with four 12" tires for stability and to handle rough terrain. Roll cage design protects the components while allowing easy access to use or maintain.
The diesel fueled burner can be turned on or off and the thermostat can heat water up 89°/193°F with an output of 189,000 BTU.
