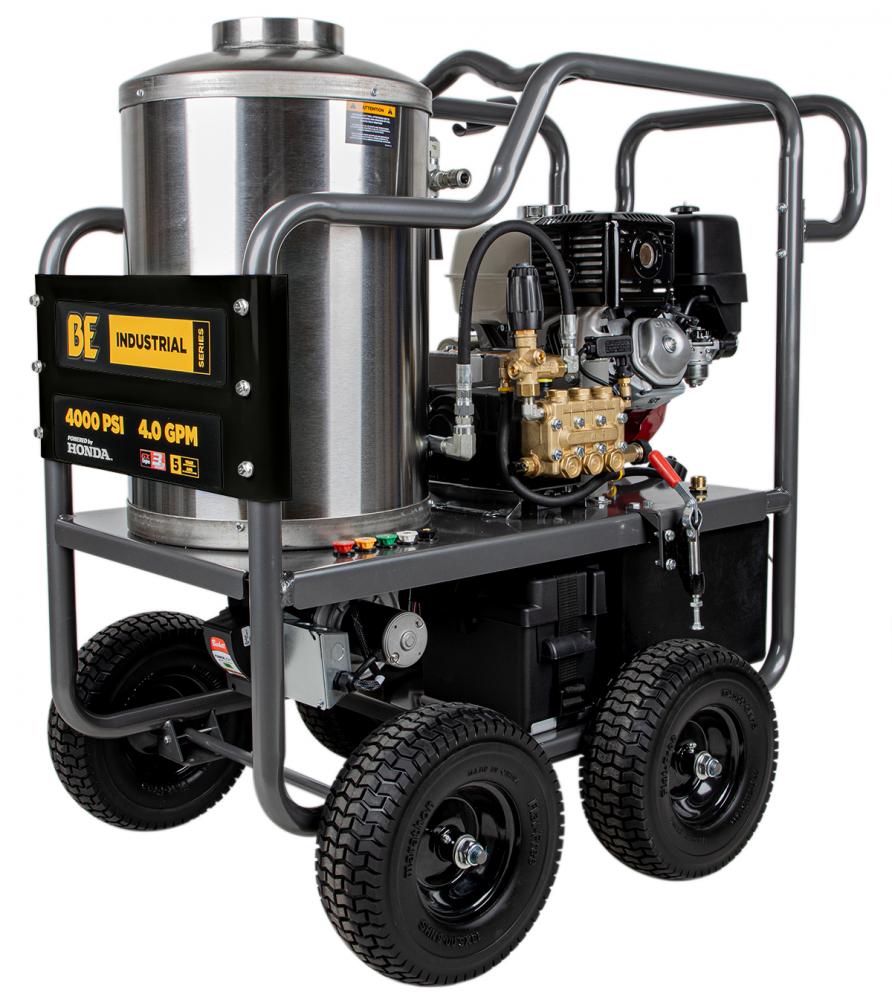

4,000 PSI - 4.0 GPM HOT WATER PRESSURE WASHER WITH HONDA GX390 ENGINE AND GENERAL TRIPLEX PUMP
Call For Price
- Part Number: HW4013HBG
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Includes a brass air fitting that can be attached to the water inlet to use an air compressor to blow out the water out of the coil. This minimizes scale build-up, prevents freezing, and increases the life of the coil.
Specifications
Details
Industrial Category:
Sports and Outdoor Equipment
Industrial Subcategory:
Pressure Washers and Accessories
Industrial Subtype:
Gasoline Pressure Washer
ACCESSORIES FITTINGS::
QUICK CONNECT
ACCESSORIES GUN WAND::
47" Insulated Gun Wand
ACCESSORIES HOSE TYPE::
100' Double Steel Braided
ACCESSORIES NOZZLE PART NUMBER::
040 orifice size; 85.210.040H
ACCESSORIES NOZZLES::
0°, 15°, 25°, 40° And Soaper
Box HEIGHT::
52
Box L x W x H:
45" x 33" x 52"
Box LENGTH::
45
Box WEIGHT:
580
Box WIDTH::
33
BURNER BTU PER HOUR:
330,000
BURNER Coil Tube Length:
96’ LENGTH OF TUBING
BURNER Fuel Capacity:
37.8 L / 10 Gal
BURNER Fuel Type:
DIESEL
BURNER Heating Coil:
1/2” COLD ROLLED STEEL
BURNER IGNITER::
12V Beckett Burner
BURNER Max Temp:
93°C/200°F
BURNER THERMOSTAT:
ON/OFF AND ADJUSTABLE
Drive System:
Belt
Engine AUTO SHUT DOWN:
AUTOMATIC LOW OIL SHUTDOWN
Engine CC::
389CC
Engine ELECTRIC START:
Recoil / Electric Start With Battery
ENGINE Extra:
ENGINE OIL DRAIN HOSE
ENGINE FUEL TANK CAPACITY::
6.1 L / 1.6 US Gal
Engine FUEL TYPE::
86 OCTANE, UP TO 10% ETHANOL
Engine MODEL::
HONDA GX390
Engine OIL TYPE::
SAE 10W30
Engine TYPE::
AIR COOLED, 4-STROKE OHV
Frame MATERIALS::
Powder Coated Steel
FRAME TRUCK MOUNT READY:
TRUCK MOUNT READY
Frame WHEELS::
13" FLAT FREE TIRES
GPM:
4.0
PSI:
4,000
Pump MODEL::
GENERAL TSS1511
Pump OIL TYPE::
30W NON-DETERGENT
Pump SOAP SYSTEM::
Adjustable Injector
PUMP THERMAL VALVE::
THERMAL VALVE
Pump TYPE::
TRIPLEX
Unit L x W x H:
48 x 32 x 46
Unit NET WEIGHT::
530
UPC::
777897339514
Warranty ACCESSORIES::
90 DAYS
Warranty ENGINE::
3 YEARS
Warranty FRAME::
LIFETIME
WARRANTY HEAT COIL::
3 YEARS
Warranty PUMP::
5 YEARS
Other Details
12" Oil Drain hoses makes maintenance much easier, cleaner, and quicker.
A lift point is built into the frame to allow the use of a crane to lift it onto a truck or trailer.
Belt drive system provides longest pump life possible by lowering its heat, vibration and RPM.
External unloader provides superior cooling and versatility to further enhance pump life.
Frame includes mounting brackets for quick installation onto trucks or trailers by removing the wheels.
Heating coil is ignited by a 12v Beckett burner that is fueled with diesel.
Industrial grade accessories included are a 100 foot high-pressure hose, spray gun wand assembly, and five spray nozzles.
Industrial grade General triplex pump featuring reinforced body, forged brass manifold, solid ceramic plungers, stainless steel check valves and thermal release valve.
Powder coated steel frame with four 13” flat free tires for stability and to handle rough terrain. Roll cage design protects the components while allowing easy access to use or maintain.
Professional quality Honda GX390 engine with electric start drives the pump. A 55AH Marine battery is included.
The burner can be turned off and controlled with the adjustable thermostat that can be set up to 93°/200°F.
