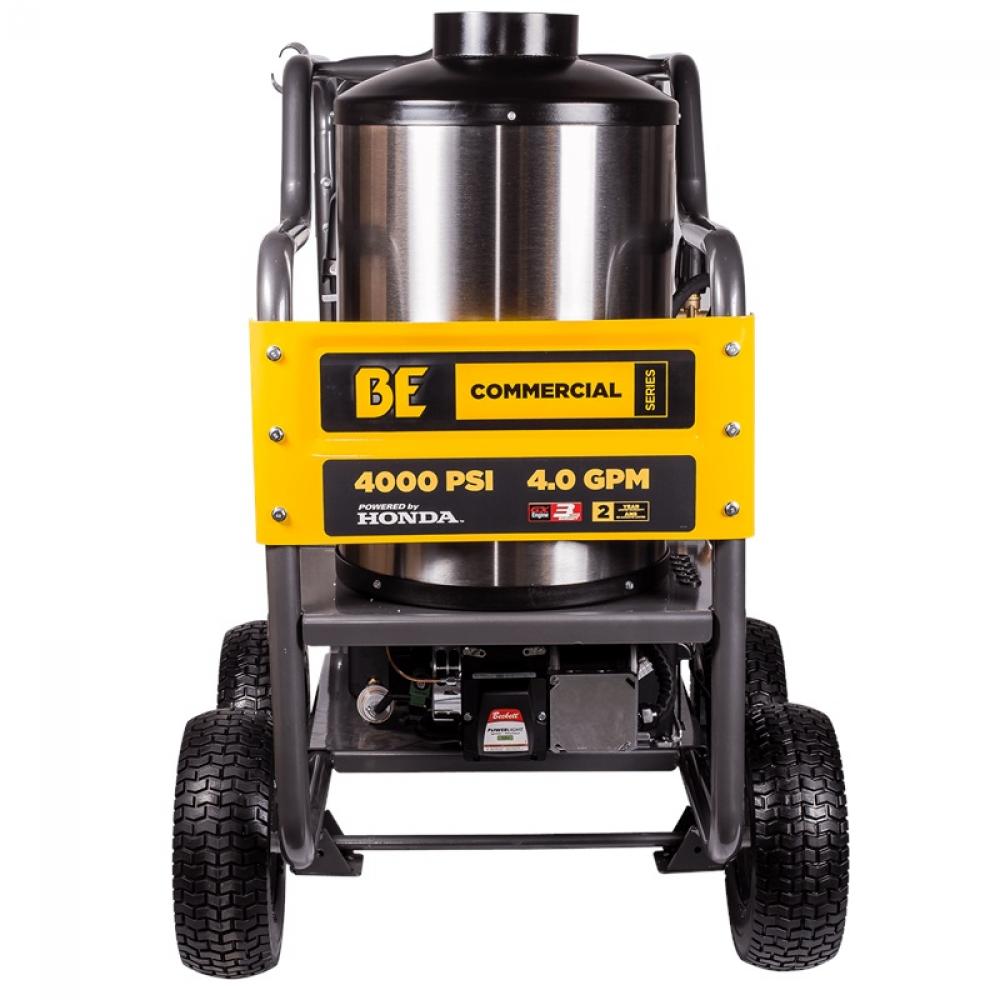

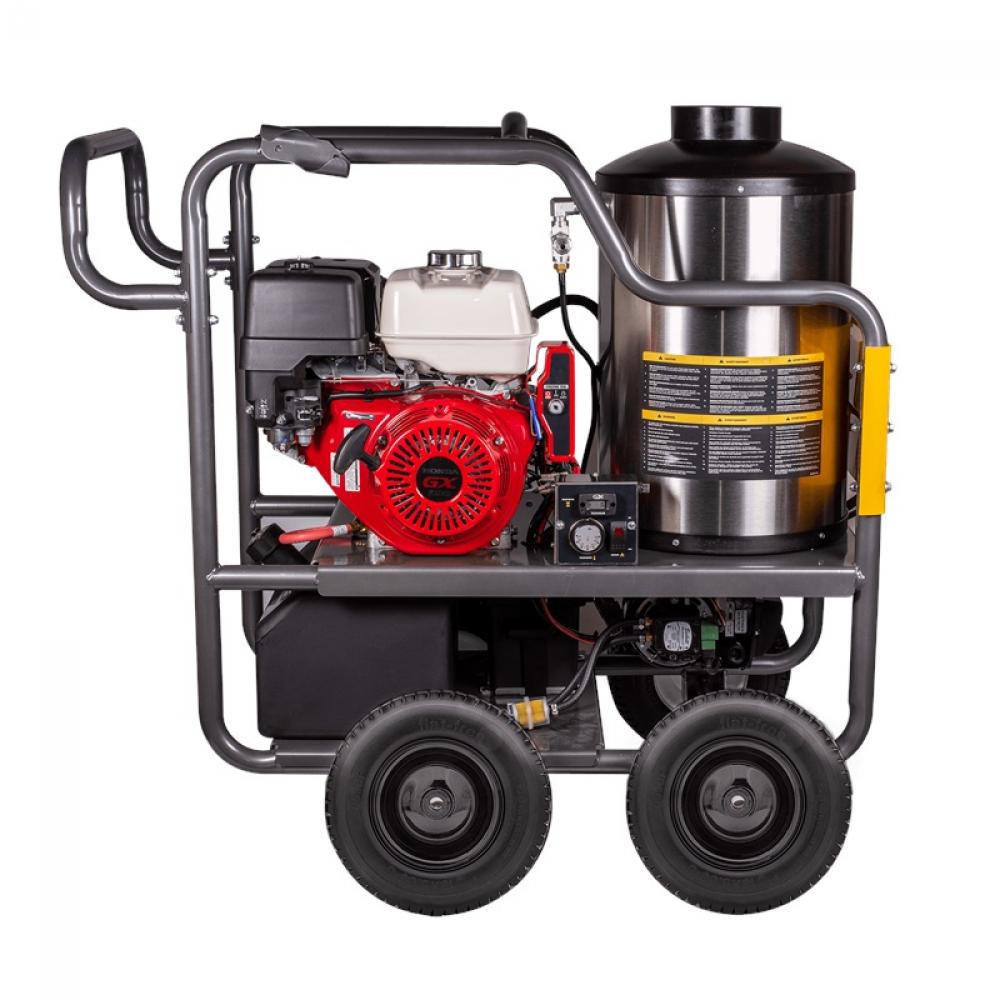

4,000 PSI - 4.0 GPM HOT WATER PRESSURE WASHER WITH HONDA GX390 ENGINE AND GENERAL TRIPLEX PUMP
Call For Price
- Part Number: HW4013HG
- UPC: 00777897292770
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Includes a brass air fitting that can be attached to the water inlet to use an air compressor to blow out the water out of the coil. This minimizes scale build-up, prevents freezing, and increases the life of the coil.
Specifications
Details
Industrial Category:
Sports and Outdoor Equipment
Industrial Subcategory:
Pressure Washers and Accessories
Industrial Subtype:
Gasoline Pressure Washer
ACCESSORIES FITTINGS::
QUICK CONNECT
ACCESSORIES GUN WAND::
36" Insulated Gun Wand
ACCESSORIES HOSE TYPE::
50' Double Steel Braided
ACCESSORIES NOZZLE PART NUMBER::
040 orifice size; 85.210.040H
ACCESSORIES NOZZLES::
0°, 15°, 25°, 40° And Soaper
Box HEIGHT::
52
Box L x W x H:
45" x 33" x 52"
Box LENGTH::
45
Box WEIGHT:
580
Box WIDTH::
33
Bullet 1:
Powered by 389cc Honda GX390 engine for proven performance. Air-cooled 4-stroke OHV engine delivers maximum performance and reliability. Includes 12V electric start, 55AH deep cycle battery
Bullet 2:
Commercial grade General triplex direct drive pump includes preset brass external unloader valve, forged brass manifold, low pressure detergent injector, and thermal relief valve for safety
Bullet 3:
12V DC oil-fired Beckett burner with low voltage inhibitor, prevents burner from starting up if battery voltage has dropped. Adjustable thermostat up to 200°F with LED switch and hour/tach meter
Bullet 4:
Heating coil: 1/2-inch heavy duty schedule 80 American made Carbon steel cold-rolled pipe to eliminate weak points. The Stainless- Steel coil skin provides extra durability and is corrosion resistant
Bullet 5:
Reinforced powder coated steel 15-inch tube frame protects the engine and pump. Includes a convenient wand holder, built-in truck mounting brackets and 13-inch flat-free tires for rugged terrains
Bullet 6:
Wand Assembly includes 36-inch lance and high pressure 5,000 PSI insulated spray gun
Bullet 7:
Features 7-Gallon, removable corrosion resistant fuel tank with fuel gauge and 12-inch oil drain hose
BURNER BTU PER HOUR:
330,000
BURNER Coil Tube Length:
96’ LENGTH OF TUBING
BURNER Fuel Capacity:
37.8 L / 10 Gal
BURNER Fuel Type:
DIESEL
BURNER Heating Coil:
1/2” COLD ROLLED STEEL
BURNER IGNITER::
12V Beckett Burner
BURNER Max Temp:
93°C/200°F
BURNER THERMOSTAT:
ON/OFF AND ADJUSTABLE
Drive System:
Direct
Engine AUTO SHUT DOWN:
AUTOMATIC LOW OIL SHUTDOWN
Engine CC::
389CC
Engine ELECTRIC START:
Recoil / Electric Start With Battery
ENGINE Extra:
ENGINE OIL DRAIN HOSE
ENGINE FUEL TANK CAPACITY::
6.1 L / 1.6 US Gal
Engine FUEL TYPE::
86 OCTANE, UP TO 10% ETHANOL
Engine MODEL::
HONDA GX390
Engine OIL TYPE::
SAE 10W30
Engine TYPE::
AIR COOLED, 4-STROKE OHV
Frame MATERIALS::
Powder Coated Steel
FRAME TRUCK MOUNT READY:
TRUCK MOUNT READY
Frame WHEELS::
13" FLAT FREE TIRES
GPM:
4.0
Included Products/Items:
50#39; Steel Braid Hose, 36#34; Gun Wand Assembly, 4 Nozzles
Item Height (inches):
50
Item Length (inches):
47
Item Weight (lbs):
530
Item Width (inches):
31
PSI:
4,000
Pump MODEL::
GENERAL EZ4040G
Pump OIL TYPE::
30W NON-DETERGENT
Pump SOAP SYSTEM::
Adjustable Injector
PUMP THERMAL VALVE::
THERMAL VALVE
Pump TYPE::
TRIPLEX
Spec 1:
PSI: 4000
Spec 10:
Hose: 50#39; x 3/8#34; Steel Braid
Spec 11:
Frame: Powder Coated Steel
Spec 2:
GPM: 4
Spec 3:
Engine Model: Honda GX390
Spec 4:
Engine CC: 390
Spec 5:
Fuel Tank Capacity: 6.1L
Spec 6:
Pump Model: General Pump EZ4040G
Spec 7:
Pump Type: Triplex Brass
Spec 8:
Unloader: External
Spec 9:
Connections: Quick Connect
Unit L x W x H:
48 x 32 x 46
Unit NET WEIGHT::
530
UNSPSC Number:
47121805
UPC::
777897292770
Video 1:
Warranty ACCESSORIES::
90 DAYS
Warranty ENGINE::
3 YEARS
Warranty FRAME::
LIFETIME
WARRANTY HEAT COIL::
3 YEARS
Warranty PUMP::
5 YEARS
Other Details
12" Oil Drain hoses makes maintenance much easier, cleaner, and quicker.
A lift point is built into the frame to allow the use of a crane to lift it onto a truck or trailer.
Commercial grade accessories included are a 50 foot high-pressure hose, spray gun wand assembly, and five spray nozzles.
Commercial grade General triplex pump featuring die-cast body, forged brass manifold, one-piece plungers, thermal release valve and improved heat dissipation.
Direct drive system connects the engine to the pump for a compact and efficient power transfer.
External unloader provides superior cooling and versatility to further enhance pump life.
Frame includes mounting brackets for quick installation onto trucks or trailers by removing the wheels.
Heating coil is ignited by a 12v Beckett burner that is fueled with diesel.
Powder coated steel frame with four 13” flat free tires for stability and to handle rough terrain. Roll cage design protects the components while allowing easy access to use or maintain.
Professional quality Honda GX390 engine with electric start drives the pump. A 55AH Marine battery is included.
The burner can be turned off and controlled with the adjustable thermostat that can be set up to 93°/200°F.
