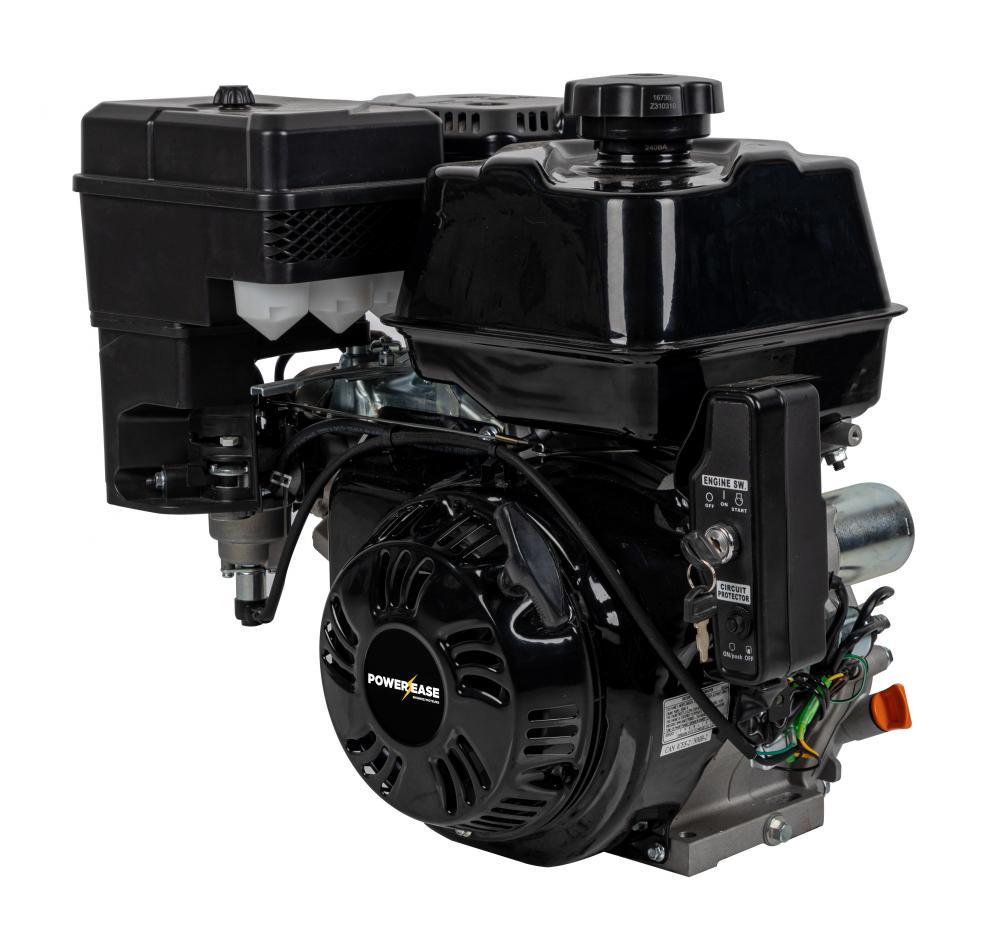

POWEREASE R500 ELECTRIC START ENGINE
Call For Price
- Part Number: 85.575.180
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Powerease engines have been used by BE Power Equipment for well over ten years and have proved themselves to be powerful and reliable. Their reputation has earned the trust to be used on a wide range of power equipment.
Specifications
Details
Industrial Category:
Sports and Outdoor Equipment
Industrial Subcategory:
Pressure Washers and Accessories
Industrial Subtype:
Electric Pressure Washers
Box L x W x H:
21" x 17" x 18"
Box WEIGHT:
87 lbs
COIL CHARGE::
18 AMPS
COMPRESSION RATIO::
8.5:1
COOLING:
AIR COOLED
CYLINDERS:
SINGLE
DISPLACEMENT:
500CC
Engine ELECTRIC START:
RECOIL/ELECTRIC
ENGINE FUEL TANK CAPACITY::
6.7 L / 1.7 US GAL
Engine MODEL::
POWEREASE R500
Engine OIL TYPE::
SAE 10W30
Engine TYPE::
4-STROKE OHV
FUEL TYPE::
UNLEADED GASOLINE
LUBRICATION::
FORCED SPLASH
MAX ETHANOL::
10%
MIN OCTANE::
86
NET POWER::
15 HP @ 3,600 RPM
NET TORQUE::
31 N·M @ 2,500 RPM
OIL CAPACITY::
1.1 L / 1.16 US QTS
QR Code copy:
Scan the QR code with your
mobile device and discover
more about this engine.
SHAFT ROTATION::
COUNTER CLOCKWISE
SHAFT TYPE::
KEYED 1" HORIZONTAL
Unit L x W x H:
18" x 20.5" x 18.7"
Unit NET WEIGHT::
82 lbs
UPC::
777987362581
Warranty ENGINE BASIC:
2 Years
Warranty Engine Registered:
5 Years
Other Details
91
Air cooled, 4-stroke, Over Head Valve (OHV) design enables higher compression ratio to obtain greater power output.
Automatic low-oil shutdown will stop the engine if the oil level drops to dangerous levels.
Common applications include: Pressure washers, water pumps, air compressors, lawn and garden equipment, tillers, and construction equipment.
Designed for field maintenance with easily accessible components like the air filter, spark plug, and carburetor.
Electric start harness with key system, starter motor and solenoid already set up makes starting the engine very easy.
Fuel recommended to use is regular unleaded that is 86 octane or more. It is best to use fuel with no ethanol, but ethanol blends of up to 10% are acceptable.
Replacement engine for equipment that requires a keyed, 1" horizontal shaft.
