Connector Clip w/Fir Tree, 0.6 - 3.0 mm Panel Thickness, 6.5
Call For Price
- Part Number: 155-36002
- UPC: 04031026219134
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

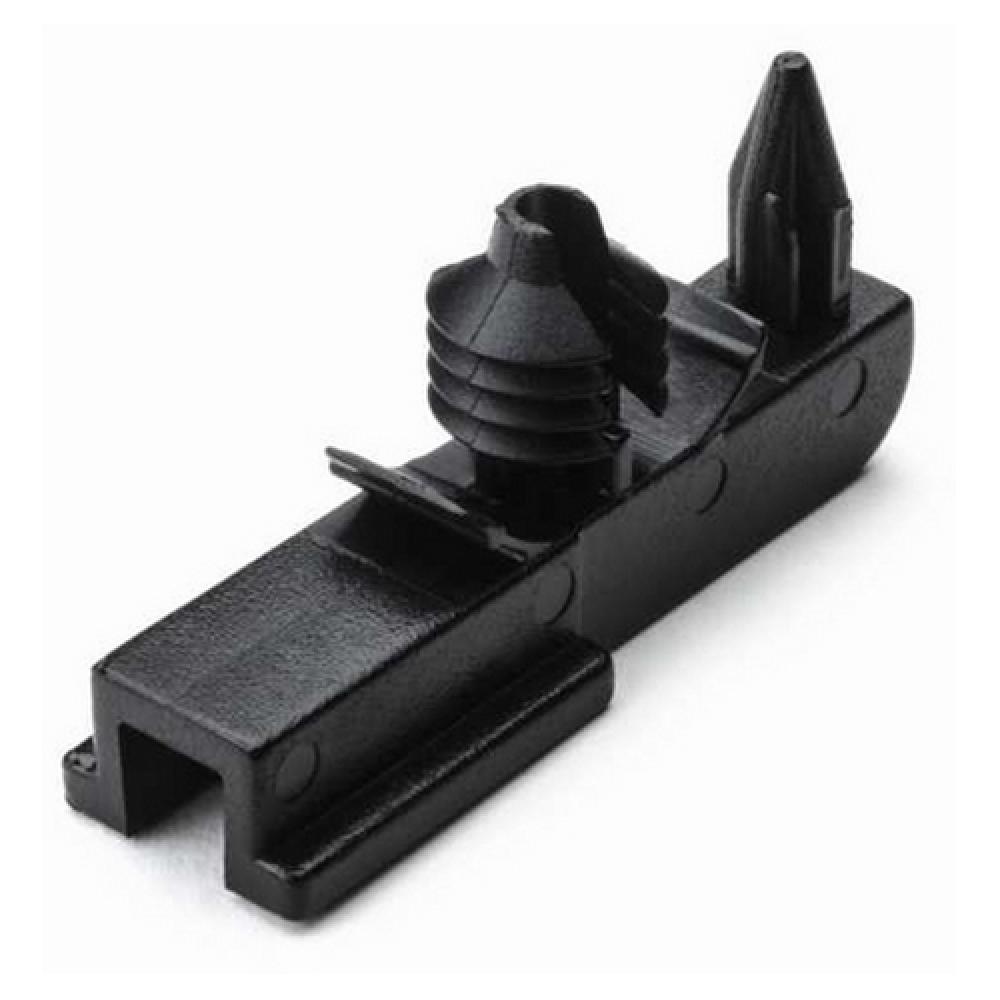

Connector Clip w/Fir Tree, 0.6 - 3.0 mm Panel Thickness, 6.5 - 7.0 mm Hole Dia, PA66HIRHS, Black, 1000/pkg
Specifications
Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Wire Management
Color:
Black (BK)
Country of Origin:
DE
Features and Benefits:
• Head design contains clamping rails to provide full circumferential compression around bundles. • Bent tail allows for quick insertion into head.
Flammability:
UL 94 HB
Height H (Imperial):
0.6 "
Height H (Metric):
15.2 mm
Length L (Imperial):
1.32 "
Length L (Metric):
33.5 mm
Material:
Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
Mounting Hole Diameter D (Imperial):
0.26 - 0.28 "
Mounting Hole Diameter D (Metric):
6.5 - 7.0 mm
Operating Temperature:
-40°F to +221°F (-40°C to +105°C)
Package Quantity (Imperial):
1000
Panel Thickness Max. (Imperial):
0.12 "
Panel Thickness Max. (Metric):
3.0 mm
Panel Thickness Min. (Imperial):
0.02 "
Panel Thickness Min. (Metric):
0.6 mm
REACH Compliant (Article 33):
Yes
Recommended Web Location:
Connector Clips;Fir Tree Clips
ROHS Compliant:
Yes
Type:
STECKERHALTER SITZ
Width W (Imperial):
0.4 "
Width W (Metric):
10.3 mm
