DD 600 U drill bits, 3-1/4 x 9/64 x 2-3/4 Inch 4 segments 24 x 3,5 x 7 mm, standard serration thread
Call For Price
- Part Number: 325391
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Product Overview
Info & Guides

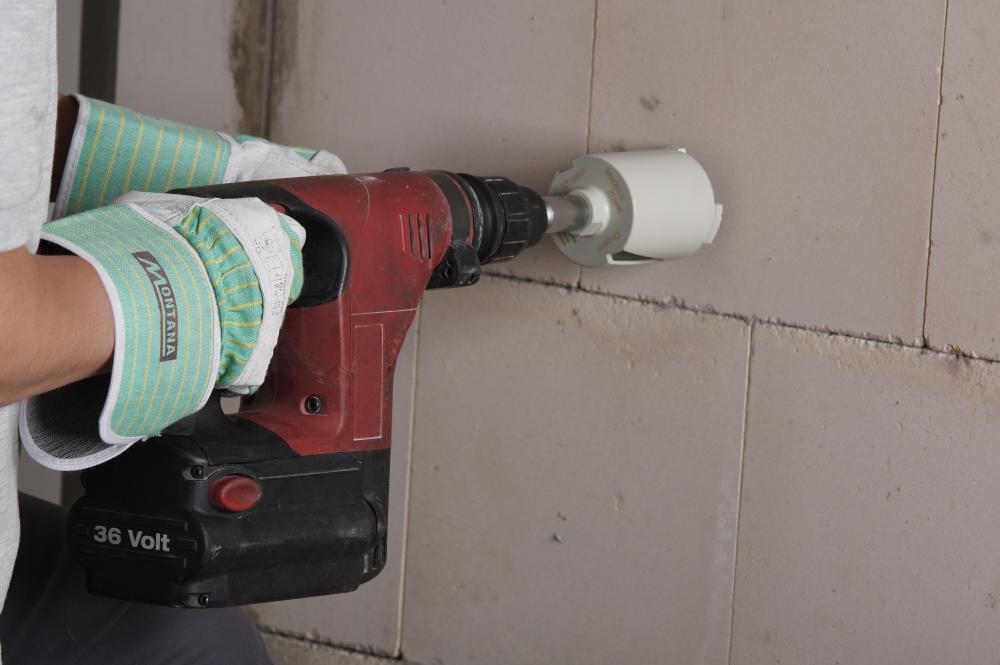

Advantages: For machining soft and medium-hard materials such as brick, clinker and firebrick - Hexagon mounting with center drill bit are separately available (see ADS 200)
Specifications
Details
Industrial Category:
Machining
Industrial Subcategory:
Drilling and Holemaking
Industrial Subtype:
Glass and Ceramic Drill Bits
Accessories Available:
236442|236588
Accessory:
236442|236588
Aggression:
medium
Applicataion Areas:
Masonry|Construction materials|Chalky sandstone
Application Area Defined:
Masonry|Construction materials|Chalky sandstone
Design:
Laser welded
Diameter (in):
3.25
Diameter (mm):
82
Edge:
Segmented
Gross weight:
0.57
Height Of Segments (in):
1/4
Height Of Segments (mm):
7 mm
Holding Device:
thread M16
Item Weight (LBS):
1.26
Length Of Segments (in):
15/16
Length Of Segments (mm):
24 mm
Machine Type:
drilling machine
Max. revolutions p.min.:
1600 U/min
Max. RPM:
1600 U/min
Number Of Segments:
4 St.
Order Minimum:
1
Output Dimensions (in):
Diameter - 3-1/4
Diameter - 82
Package Quantity:
1 ST
Package Volume (Cubic Decimeter):
1.2
Packaging Type:
sleeve
Packaging UPC:
4014855218776
Service life:
very high
Speed Limit (M/S):
8 m/s
Speed limit [m/s]:
8 m/s
Type of Use:
Drilling machine
UPC Number:
4014855218776
Version of Rim:
standard serration
Version Of The Rim:
standard serration
Width Of Segments (in):
9/64
Width Of Segments (mm):
3,5 mm
Other Details
For machining soft and medium-hard materials such as brick, clinker and firebrick
Hexagon mounting with center drill bit are separately available (see ADS 200)
