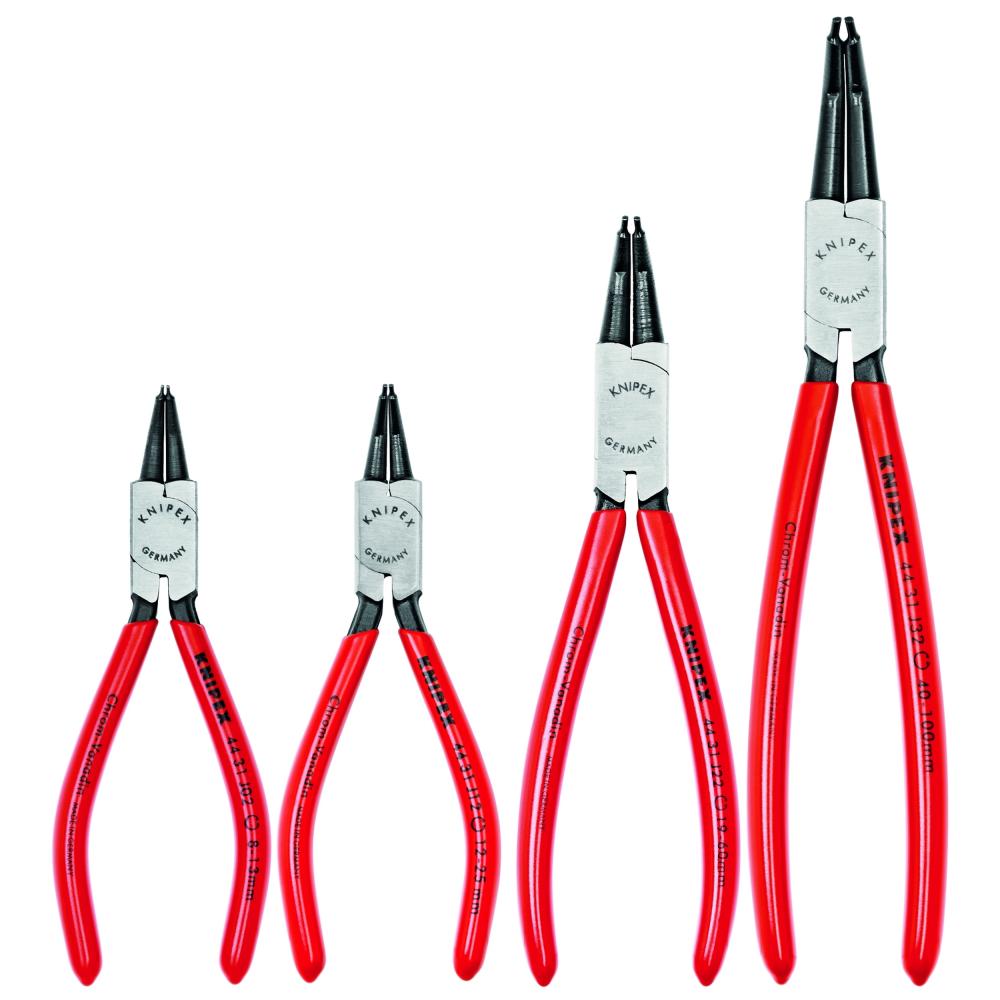

4 Pc Internal Snap Ring Set-45 Degree
Call For Price
Price Subject To Change
- Part Number: 9K 00 19 01 US
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides

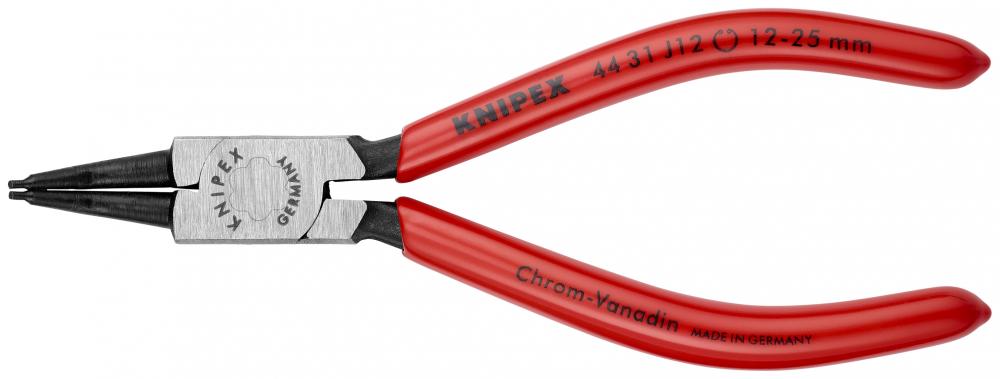

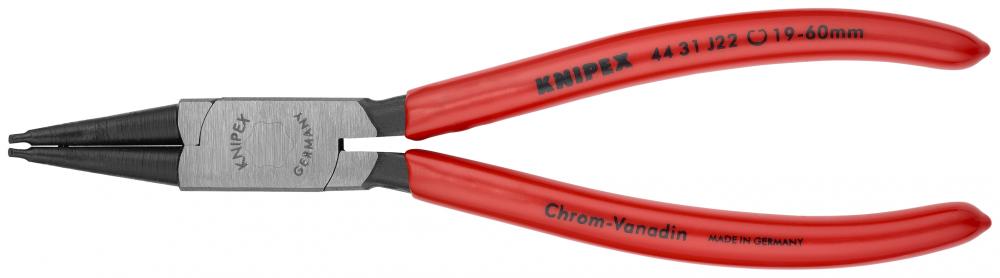

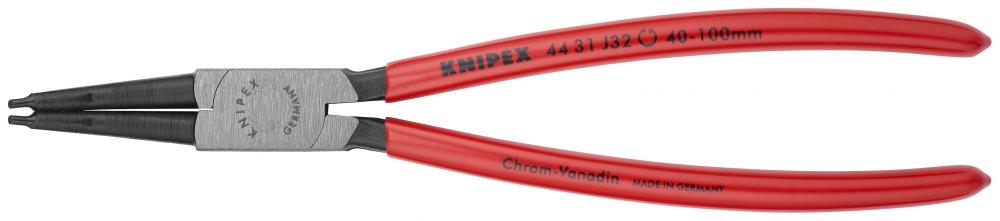

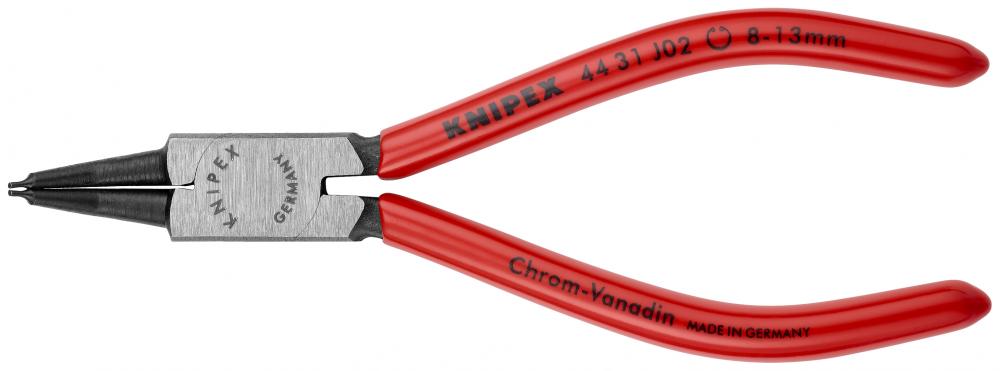

Set Includes Part Numbers: 44 31 J02 | 44 31 J12 | 44 31 J22 | 44 31 J32
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Pliers
Industrial Subtype:
Retaining Ring Plier Sets
1000 Volt Insulated:
No
Angled Head:
45 degree
Brand Name:
KNIPEX
Circlip - Internal Bore Size - inches:
5/16" to 3 15/16"
Color:
Red
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
ECCN:
EAR99
Handle Length:
3 1/4" (44 31 J12); 4 1/4" (44 31 J02 and 44 31 J22); 5 1/4" (44 31 J32)
Handle Type:
Plastic coating
Harmonized Tariff Code:
8203.20.6030
Included Products/Items:
Color: Red
Item Height (inches):
5/8"
Item Height inches:
5/8"
Item Length inches:
5 1/2"
Item Quantity:
4
Item Weight (lbs):
1.285
Item Weight lbs:
0.2
Item Width (inches):
1 15/16"
Item Width inches:
1 15/16"
Joint Type:
Rivet
Material Type:
Chrome vanadium steel, forged, oil-hardened
Other Surface Finish:
Black atramentized
Package Height (inches):
2.3"
Package Height inches:
2.3"
Package Length (inches):
10.9"
Package Length inches:
10.9"
Package Weight (lbs):
1.285
Package Weight lbs:
1.285
Package Width (inches):
3.3"
Package Width inches:
3.3"
Prop 65 Conflict:
View
Reach:
does not contain SVHC
RoHS:
not applicable
Surface Finish:
Polished
Tip Width:
1/32" (44 31 j02); 3/64" (44 31 j12); 5/64" (44 31 j22); 3/32" (44 31 j32)
Tool Attributes:
(1) 44 31 J02 5-1/2" Circlip "Snap-Ring" Pliers-Internal 45º Angled, (1) 44 31 J12 5-1/2" Circlip "Snap-Ring" Pliers-Internal 45º Angled, (1) 44 31 J227-1/4" Circlip "Snap-Ring" Pliers-Internal 45º Angled, (1) 44 31 J
Internal circlip pliers are used for fitting circlips into bore holes
Unit Of Measure:
Set
UNSPSC:
27112140
UNSPSC Number:
27112140
UOM Qty:
4
UPC Code:
843221007126
Other Details
For fitting snap rings into bores ranging from 5/16" - 3 15/16"
Internal circlip pliers for installing or removing circlips in bore holes
Non-slip, 45˚ angled solid tips
Set includes four (4) Internal 45° Angled Snap Ring Pliers-Forged Tips: 44 31 J02 (5 1/4"), 44 31 J12 (5 1/4"), 44 31 J22 (7") and 44 31 J32 (8 3/4")
Solid style, forged
The KNIPEX Internal Angled Snap Ring Pliers Set is a versatile and reliable tool for handling snap rings on external shafts. The angled design provides access to confine spaces making it easier to remove or install snap rings effectively. Handle a wide ran
Tips are forged as one part of the tool
