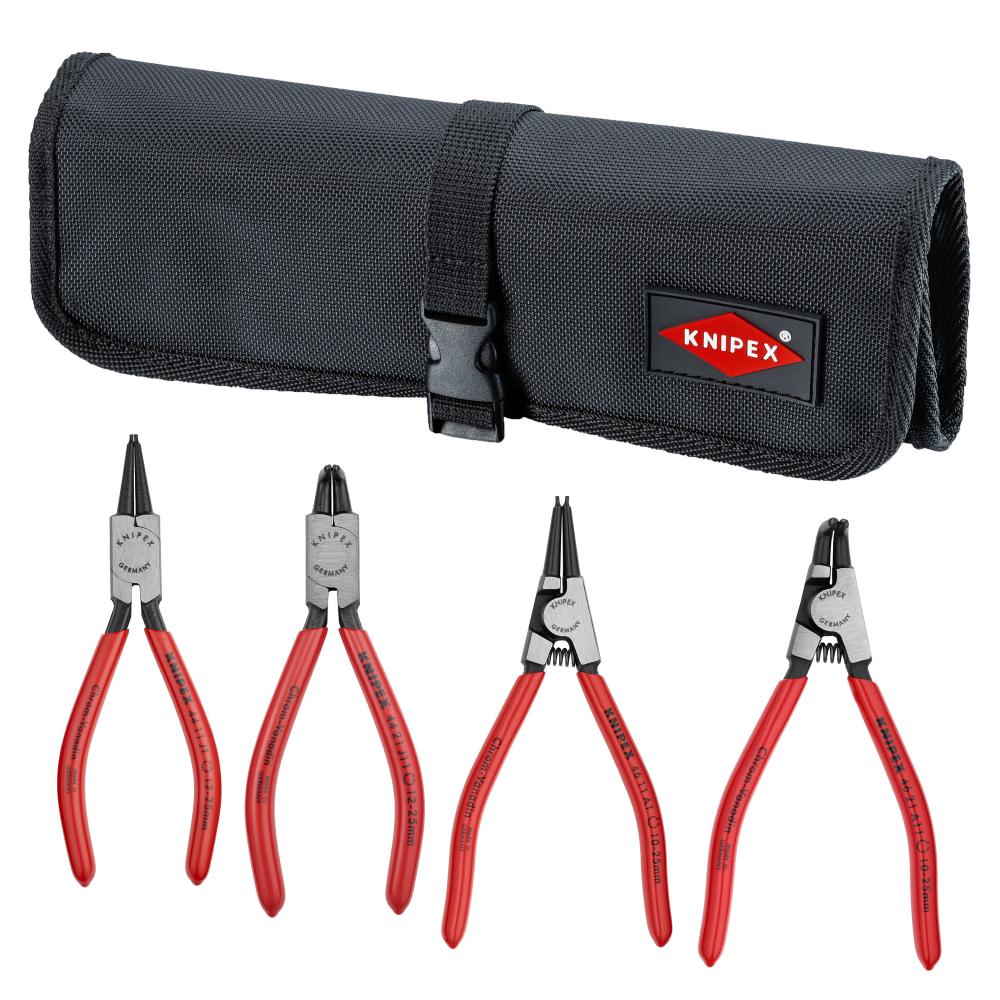

4 Pc Snap Ring Set In Tool Roll-Straight and 90 Degree
Call For Price
Price Subject To Change
- Part Number: 9K 00 19 52 US
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Set Includes Part Numbers: 44 11 J1 | 44 21 J11 | 46 11 A1 | 46 21 A11 | tool pouch
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Pliers
Industrial Subtype:
Retaining Ring Plier Sets
1000 Volt Insulated:
No
Angled Head:
90 degree (44 21 J11 and 46 21 A11)
Brand Name:
KNIPEX
Circlip - External Shaft Size - inches:
25/64" to 1" (46 11 A1 and 46 21 A11)
Circlip - Internal Bore Size - inches:
15/32" to 1" (44 11 J1 and 44 21 J11)
Color:
Red
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
DIN:
DIN 5256 C (44 11 J1); DIN 5256 D (44 21 J11); DIN 5254 A (46 11 A1); Din 52 54 B (46 21 A11)
ECCN:
EAR99
Handle Type:
Plastic coating
Harmonized Tariff Code:
8203.20.6030
Included Products/Items:
Color: Red
Item Height (inches):
2 7/16"
Item Height inches:
2 7/16"
Item Length inches:
11"
Item Quantity:
4
Item Weight (lbs):
1.445
Item Weight lbs:
1.165
Item Width (inches):
4 3/16"
Item Width inches:
4 3/16"
Joint Type:
Rivet
Material Type:
Chrome vanadium steel, forged, oil-hardened
Other Surface Finish:
Black atramentized
Package Height (inches):
4.3"
Package Height inches:
4.3"
Package Length (inches):
11.1"
Package Length inches:
11.1"
Package Weight (lbs):
1.445
Package Weight lbs:
1.445
Package Width (inches):
4.4"
Package Width inches:
4.4"
Prop 65 Conflict:
View
Reach:
does not contain SVHC
RoHS:
not applicable
Surface Finish:
Polished
Tip Width:
3/64"
Tool Attributes:
(1) 44 11 J1 5-3/4" Circlip "Snap-Ring" Pliers-Internal Straight, (1) 44 21 J11 5-1/4" Circlip "Snap-Ring" Pliers-Internal 90º Angled, (1) 46 11 A1 5-1/2" Circlip "Snap-Ring" Pliers-External Straight, (1) 46 21 A11 5
Set includes both internal circlip pliers for fitting circlips into bore holes and external circlips pliers for fitting circlips on shafts
Unit Of Measure:
Set
UNSPSC:
27112140
UNSPSC Number:
27112140
UOM Qty:
4
UPC Code:
843221006990
Other Details

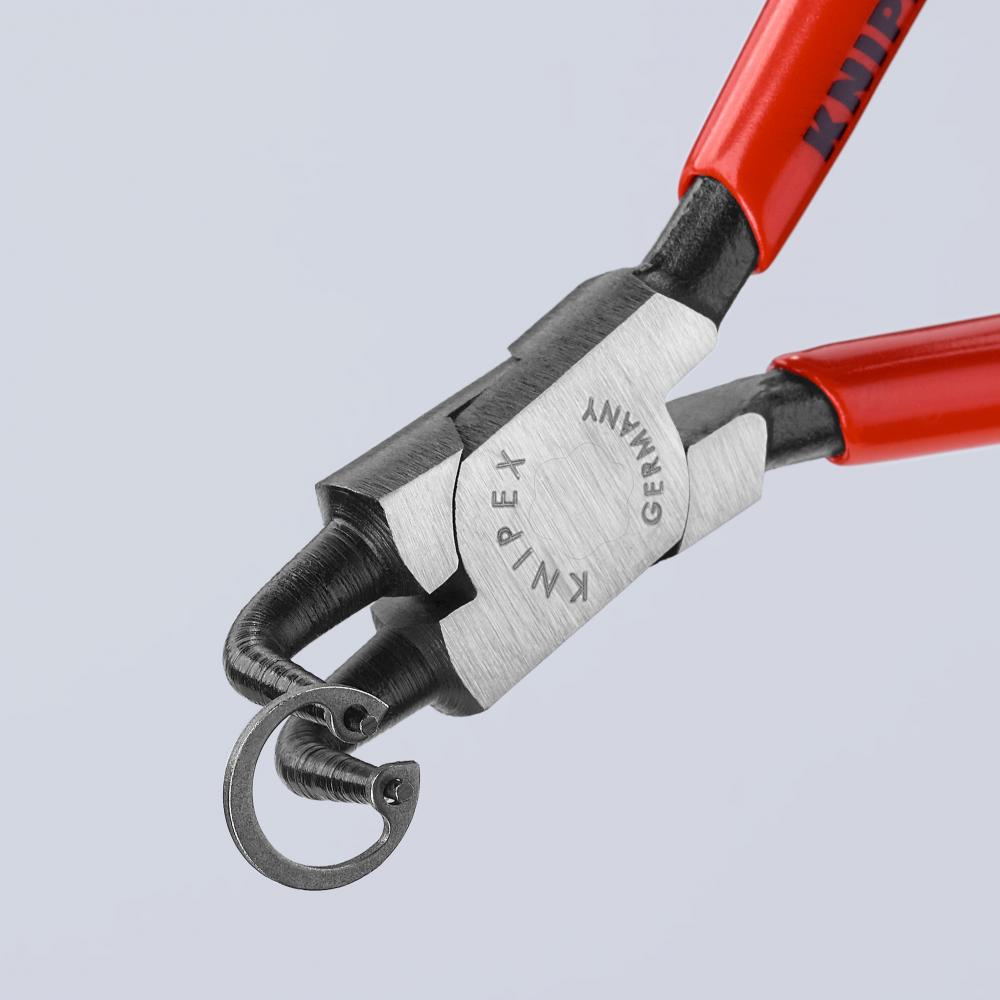

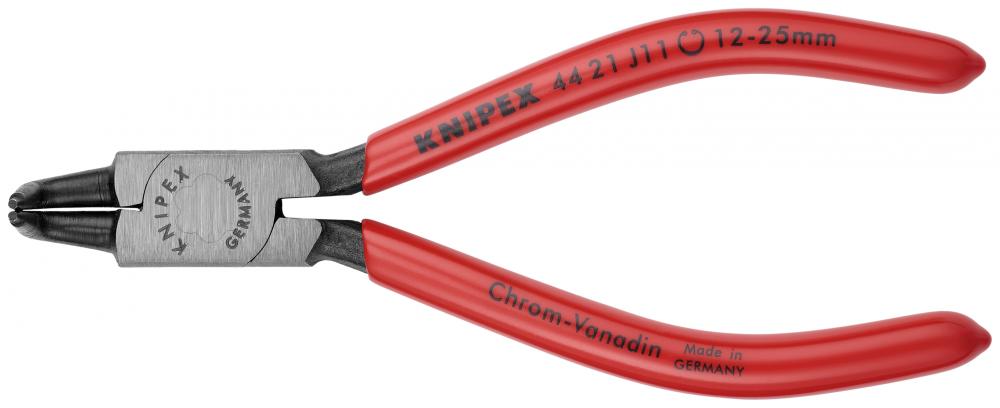

44 11 J1 (5 1/2") and 44 21 J11 (5" - 90° Angled) - Internal Snap Ring Pliers-Forged Tips

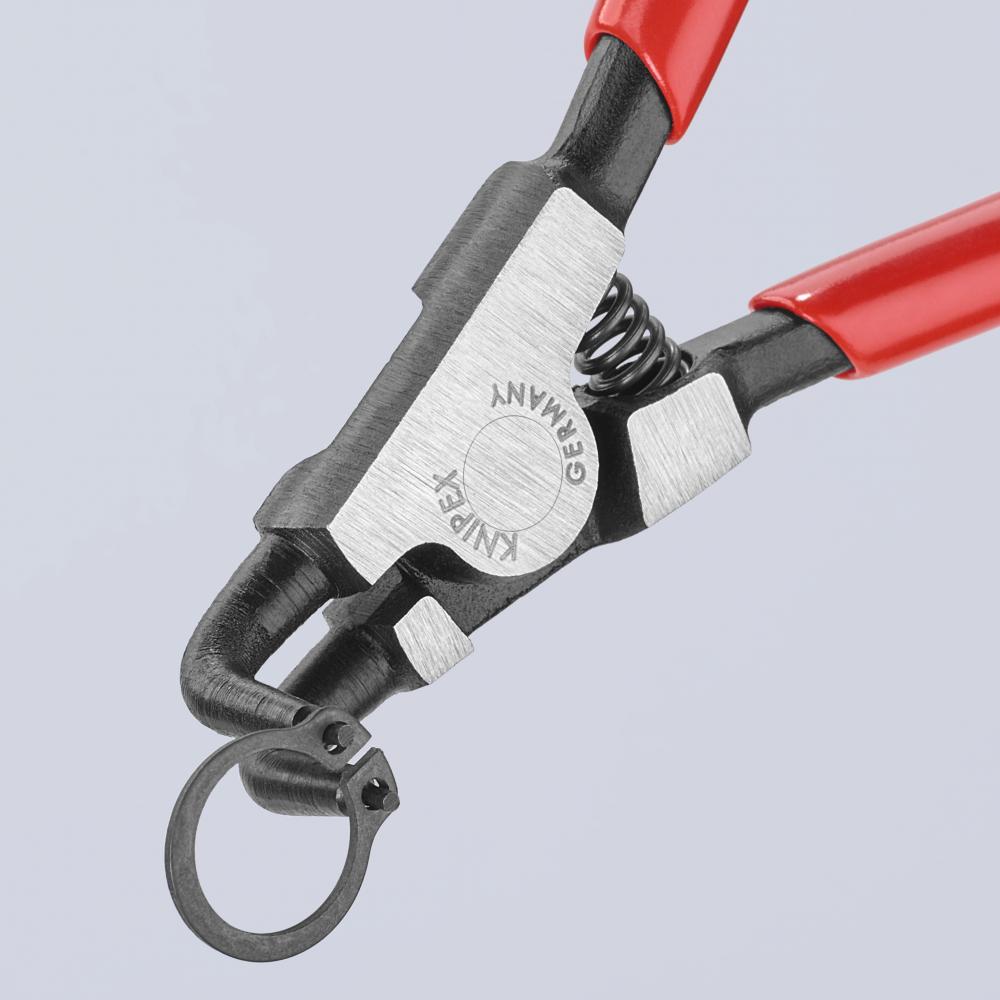

46 11 A1 (5 1/2") and 46 21 A11 (5 1/4" - 90° Angled) - External Snap Ring Pliers-Forged Tips
External circlip pliers for installing or removing circlips on shafts
For fitting snap rings into bores ranging from 15/32" - 1"
For fitting snap rings on shafts, ranging from 25/64" - 1"
Four pocket tool roll up pouch constructed of hard-wearing polyester fabric offers a convenient way to store tools when not in use
Internal circlip pliers for installing or removing circlips in bore holes
Non-slip forged solid tips
Sewn pocket for each tool so tools remain secure and adjustable snap closure
The KNIPEX Snap Ring Pliers Set is a comprehensive and high-quality tool kit designed specifically for working with circlips or snap rings. The set has both internal and external snap ring pliers. These pliers features precise tips or jaws that securely gr
Tips are forged as one part of the tool
