Leading Edge Series - Tie-Back
Call For Price
Price Subject To Change
- Part Number: V845528009TB
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item

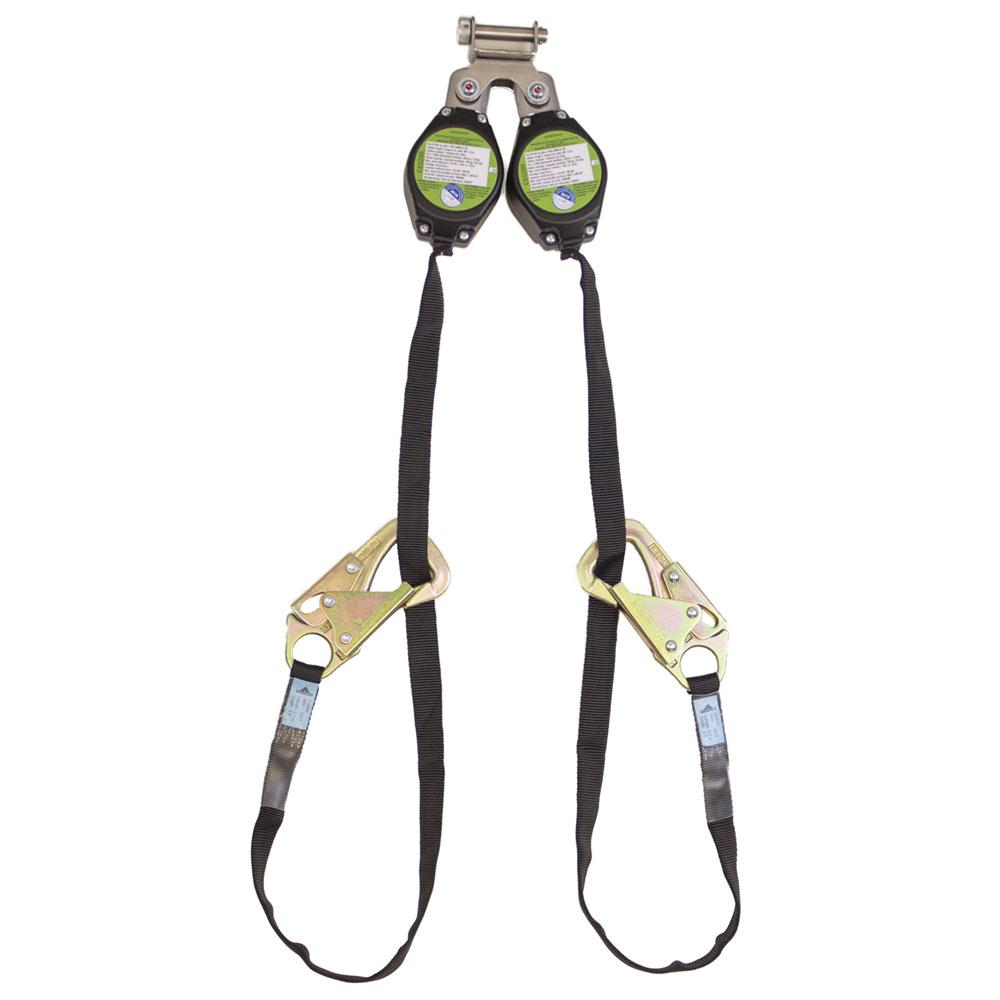

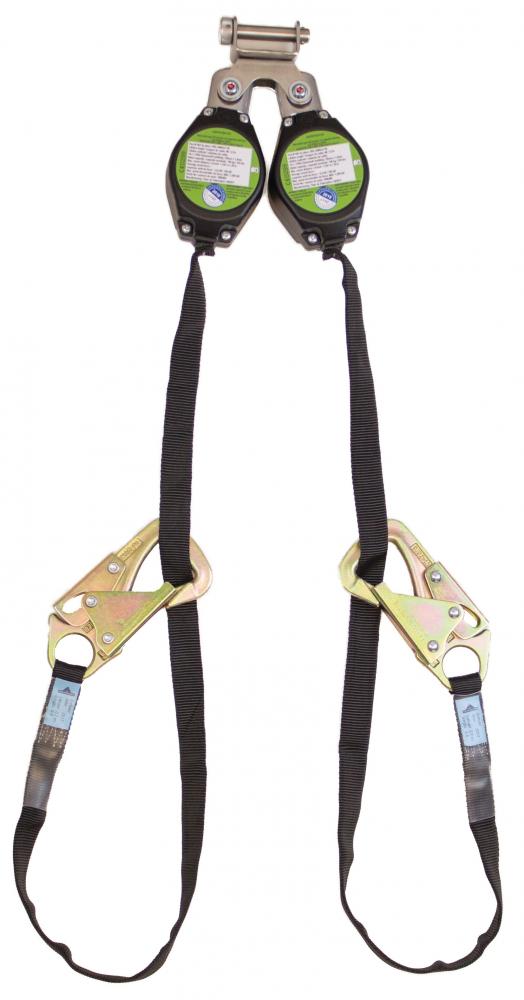

Product Overview
Peakworks® Leading Edge (LE) Self Retracting Lifelines (SRL) are ideal for direct connection to most harnesses with an industry leading weight of only 6 lbs - 9' length. Designed with a 310 lb. weight capacity with the combined weight of the person, tools & equipment. Dual SRL with snap hooks always allows users to be tied off in a variety of configurations, with a range that has been developed to be durable and efficient at height construction or maintenance application. Peakworks® SRLs do not use external shock packs, reducing fall distance calculations & keeping your workers safer. The cable retracts to eliminate slack in the lifeline & offers workers a great amount of mobility from the anchor point. Leading Edge: Limits lifeline twisting for smooth operation & worker satisfaction;=. Tension is always kept on the lifeline, which reduces dragging, snapping & trip falls and allows users to maintain a normal work pace without being interrupted by lock ups. ANSI Z359.14-2014 certified, meets Class A & CSA Z259.2.2 standards; Users can work from both vertical and horizontal anchor points, protecting them from sharp and abrasive surfaces at edges with a fall distance of less than 2 ft.
Specifications
Details
Industrial Category:
Safety
Industrial Subcategory:
Fall Protection
Industrial Subtype:
Self-Retracting Lifelines
Anchor Hook Material:
Steel
Anchor Hook Type:
Tie-Back Snap Hook
Average Arrest Force:
765 lbf
Body Hook Type:
Connection Pin
Capacity:
300 lb
Class Type:
A
Color:
Hi-Vis Green/Black
COO (2 digit code):
DE
Each Depth (in):
4.80
Each Length (in):
12.60
Each Qty.:
1
Each Weight (lb):
6.67
Each Width (in):
6.75
Gate Opening (in.):
0.83"
Has MSDS:
No
Housing Material:
Aluminum
HTS (Harmonized Tariff Schedule) Code:
7616.99.5090
Leading Edge:
Yes
Leg Type:
Twin
Length:
9 ft
Lifeline Material:
Dyneema®
Master Pack Depth (in):
7
Master Pack Length (in):
5
Master Pack Qty.:
1
Master Pack Width (in):
13
Maximum Total Arrest Distance:
0.61 m
Maximum Total Arrest Distance - Non-Leading Edge a:
24 in
Minimum Fall Clearance - Leading Edge application:
13 ft
Minimum Fall Clearance - Leading Edge applications:
4 m
Minimum Fall Clearance - Non-Leading Edge applicat:
1.83 m
Minimum set back distance from edge - Leading Edge:
12 in
Pallet Qty:
1
Rescue and Recover - SRL-R:
No
Special Features:
Sewn-in Indicator|Lightweight
Standards:
OSHA|LE certified|ANSI Z359.14-2014, Class A
UNSPSC:
46182301
UOM:
EA
Webbing/Cable Width:
0.77 in
Other Details
100% Tie-Off: Dual SRL with snap hooks allow users to be tied off in a variety of configurations, with a range that has been developed to be durable and efficient at height construction or maintenance application
Certified: ANSI Z359.14-2014 certified, meets Class A & CSA Z259.2.2 standards; Users can work from both vertical and horizontal anchor points, protecting them from sharp and abrasive surfaces at edges with a fall distance of less than 2 ft
Leading Edge: Limits lifeline twisting for smooth operation; Tension kept on the lifeline reduces dragging, snapping & trip falls; Allows users to maintain a normal work pace without being interrupted by lock ups
No Shock Pack: Peakworks SRLs do not use external shock packs, reducing fall distance calculations & keeping your workers safer; Cable retracts to eliminate slack in the lifeline & offers workers mobility from the anchor point
SRL Weight: Direct connection to most harnesses with weight of only 6 lbs. - 9' length; Lighter and ergonomically designed with a 310 lb. weight capacity
