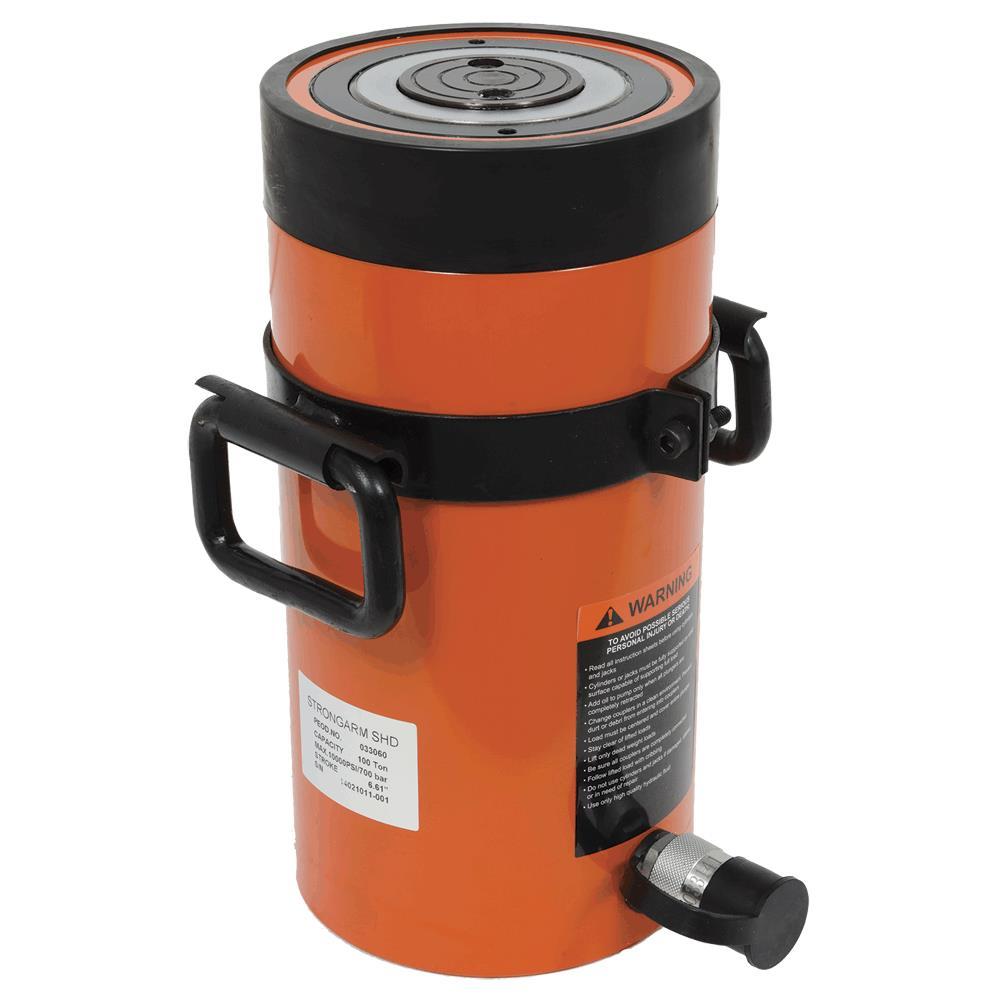

Single Acting Cylinders
Call For Price
- Part Number: 033060
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
These general-purpose rams attach to a hydraulic pump and will lift heavy loads with minimal effort.
Specifications
Details
Industrial Category:
Hydraulics
Industrial Subcategory:
Hydraulic System Components
Industrial Subtype:
High Pressure Hydraulic Cylinders
Base Fixturing Holes - Bolt Circle (U):
5.47"
Base Fixturing Holes - Thread (V):
3/4"-10UNC
Base Fixturing Holes - Thread Depth (Z):
0.98"
Brand:
JET
Capacity @ 700 Bar (10,000 PSI):
95
Collapsed Height (A):
14.06"
Collar Thread (C):
6-7/8" - 12
Collar Thread Length (X):
1.73"
Country of Origin:
CN
Duty Level:
Super Heavy Duty
Each Qty.:
1
Effective Area:
20.62 in²
Extended Height (B):
20.67"
Harmonized Tariff Code:
8412.21.00.90
HTS (Harmonized Tariff Schedule) Code:
8302.49.00.90
Inner Pack Qty.:
0
Item Height (inches):
14.75
Item Length (inches):
18.50
Item Quantity:
1
Item Weight (lbs):
147.0000
Item Width (inches):
13.00
Model Number:
SACS1006
Oil Capacity:
136,3 in³
Ordering Quantity:
1
Outside Diameter (D):
6.97"
Package Quantity:
1
Package UPC:
10059629869304
Piston Rod Diameter (F):
4.13"
Quantity:
1
Spring Return:
Yes
Stroke Length:
6.61"
UPC:
059629869307
UPC Code:
059629998212
UPC Number:
059629998212
Other Details
Baked-on enamel finish provides increased corrosion resistance
Built with a heavy-duty plunger spring return
Features collar threads, plunger threads, and base mounting holes for optional fixture attachments
Made of high-strength alloy steel for maximum durability
Professional grade 3/8”-18 NPT quick coupling
