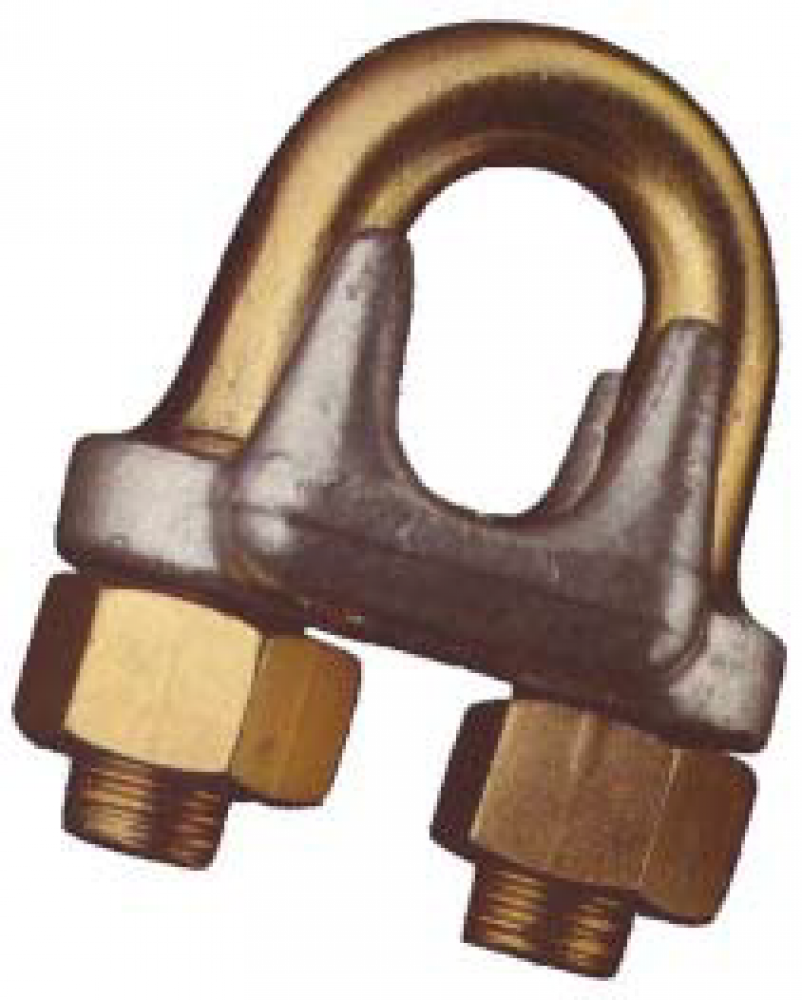

‘Golden U-Bolt’ ® Forged Wire Rope Clips
Call For Price
- Part Number: 2907 0200
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (15)
Specifications
Details
Industrial Category:
Material Handling
Industrial Subcategory:
Wire Rope and Fittings
Industrial Subtype:
Wire Rope Clips
Description:
"GOLDEN-U-BOLT" DROP-FORGED WIRE ROPE CLIP
Detail:
2 ''
Dimensions (Inch) (A):
1.2
Dimensions (Inch) (B):
6.75
Dimensions (Inch) (D):
3.31
Dimensions (Inch) (F):
4.41
Dimensions (Inch) (G):
5.86
Dimensions (Inch) ©:
3.11
Dimensions (Inch) €:
3.31
Finish:
Gold Chromated, Hot Dipped Galvanized
Min. No. Of Clips:
8
Nut Torque (ft/lbs):
750
Rope Diameter:
2
Standard:
FF-C-450, Type 1, Class 1, ASME B30.26
Turn Back Length (Inch):
71
Type:
Golden U-Bolt
Unit:
/1
Weight:
1375 lbs/100'
Other Details
Forged saddle, hot dipped galvanized, permanently embossed with VGD®, size and forged
Gold Chromated U-Bolts and Nuts identify ‘Vanguard’ product
Meet Federal Spec. FF-C-450, Type 1, Class 1 and ASME B30.26 standard
The tightening torque values shown are based upon the threads being clean, dry and free of lubrication.
Torque tested threads
