![1/2" Drive 6-Point SAE 3/4" 6.57"/166.9mm Shank Length Non-Tension Socket Flextension](/vendors/7807/large/6a8e214db9fead6dcf02870aa23d494aa4329a8a-large.png "1/2" Drive 6-Point SAE 3/4" 6.57"/166.9mm Shank Length Non-Tension Socket Flextension")

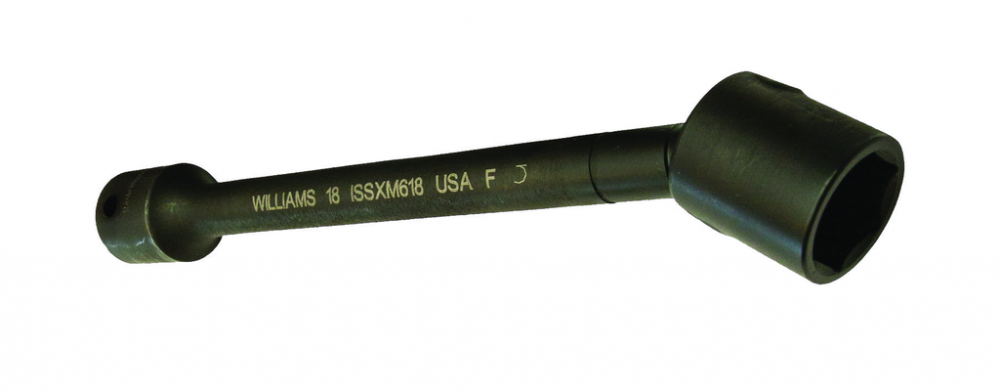

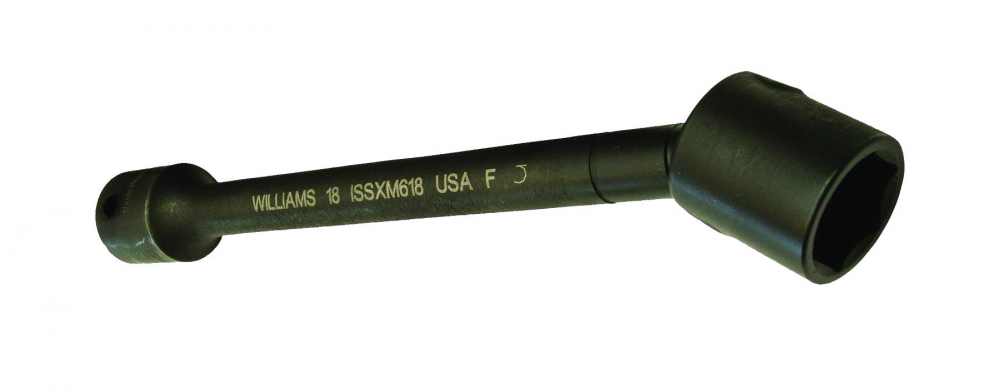

1/2" Drive 6-Point SAE 3/4" 6.57"/166.9mm Shank Length Non-Tension Socket Flextension
Call For Price
- Part Number: JHWISDX624LD
- UPC: 00662459334817
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
1/2" Drive 6-Point SAE 3/4" 6.57"/166.9mm Shank Length Non-Tension Socket Flextension
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Sockets and Bits
Industrial Subtype:
Socket Extensions
Country of Origin:
United States
Dimension A, Shank Length (inches/mm):
6.57/166.9
Dimension B, Socket Length, inches/mm:
0.85/21.6
Dimension C, Socket Diameter, inches/mm:
1.00/25.4
Dimension D, Socket Nose Diameter, inches/mm:
1.00/25.4
Dimension E, Hex Depth, inches/mm:
0.31/7.9
Drill Size (Inches):
1/2 inches
Extension Type:
Non-Impact
Finish:
Oxide
OG1 Page:
290
Primary Material:
Steel
Socket Points:
12
Socket Size, inches:
3/4 inches
Tension:
No
Warranty:
Limited warranty; free from defects in workmanship and materials
Other Details
Drive end has a 7/32" cross hole & bevel for ease of use
Durable black oxide finish
Flextensions are designed for use on hand and power tools (Impulse or Direct drive); NOT FOR IMPACT TOOL USE
Maximum working torque values: 160 Ft. Lbs. /1920 In. Lbs. /217 Nm
Other lengths and socket sizes available by special order. Contact your Snap-on Industrial Brands representative
Socket retention pin is TIG welded, providing full rotation power to the socket
Sockets feature SUPERTORQUE lobular openings for greater turning power without deforming the fastener
Up to 30 degree angle offset
