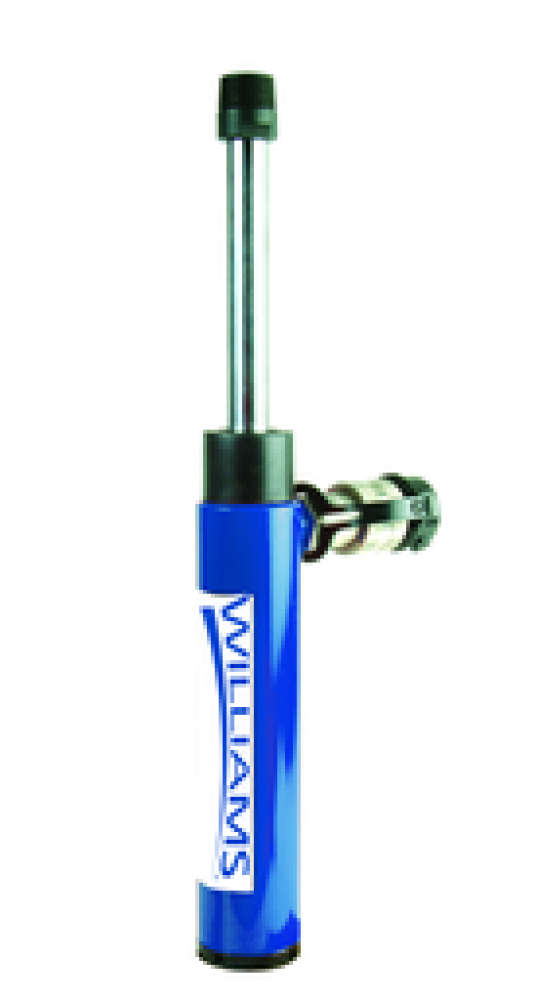

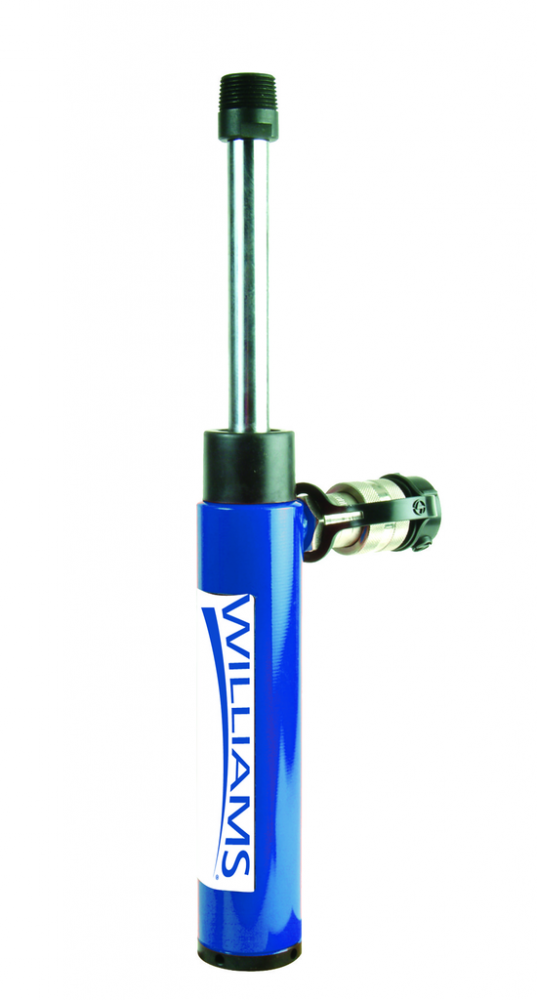

10 Ton Pull Cylinder
Call For Price
- Part Number: JHW6CP10T06
- UPC: 00662459923172
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
10 Ton Pull Cylinder
Specifications
Details
Industrial Category:
Hydraulics
Industrial Subcategory:
Hydraulic System Components
Industrial Subtype:
High Pressure Hydraulic Cylinders
Actuation:
Single Acting
Body Material:
Steel
Country of Origin:
Taiwan
Cylinder Capacity, tons:
10
Cylinder Effective Area (in2):
2.44
Dimension A, Collapsed Height (inches):
11.75
Dimension B, Extended Height (inches):
17.7
Dimension C, Cylinder Bore Diameter, inches:
2.17
Dimension D, Outside Diameter, inches:
3.35
Dimension E, Plunger, inches:
1.26
Dimension G, Top to Inlet Port, inches:
1.5
Dimension H, Base Mounting Hole, Thread, inches:
M30x2
Dimension H, Collar Thread, inches:
M85x2
Dimension K, Plunger Thread Length, inches:
1.02
Dimension L, Collar Thread Length, inches:
1
Dimension Z, Base Mounting Hole, Depth, inches:
0.98
OG1 Page:
400
Oil Capacity (in3):
14.48
Pressure at Capacity, psi:
8200
Stroke, inches:
5.95
Warranty:
Limited warranty; free from defects in workmanship and materials
Other Details
External plunger threads
High strength steel construction
Internal base threads
Maximum working pressure: 10,000 psi / 700 bar
One piece high grade alloy bearing for side load protection and longer life
Polyurethane cup seal helps provide optimum performance
Used for pulling and tensioning
