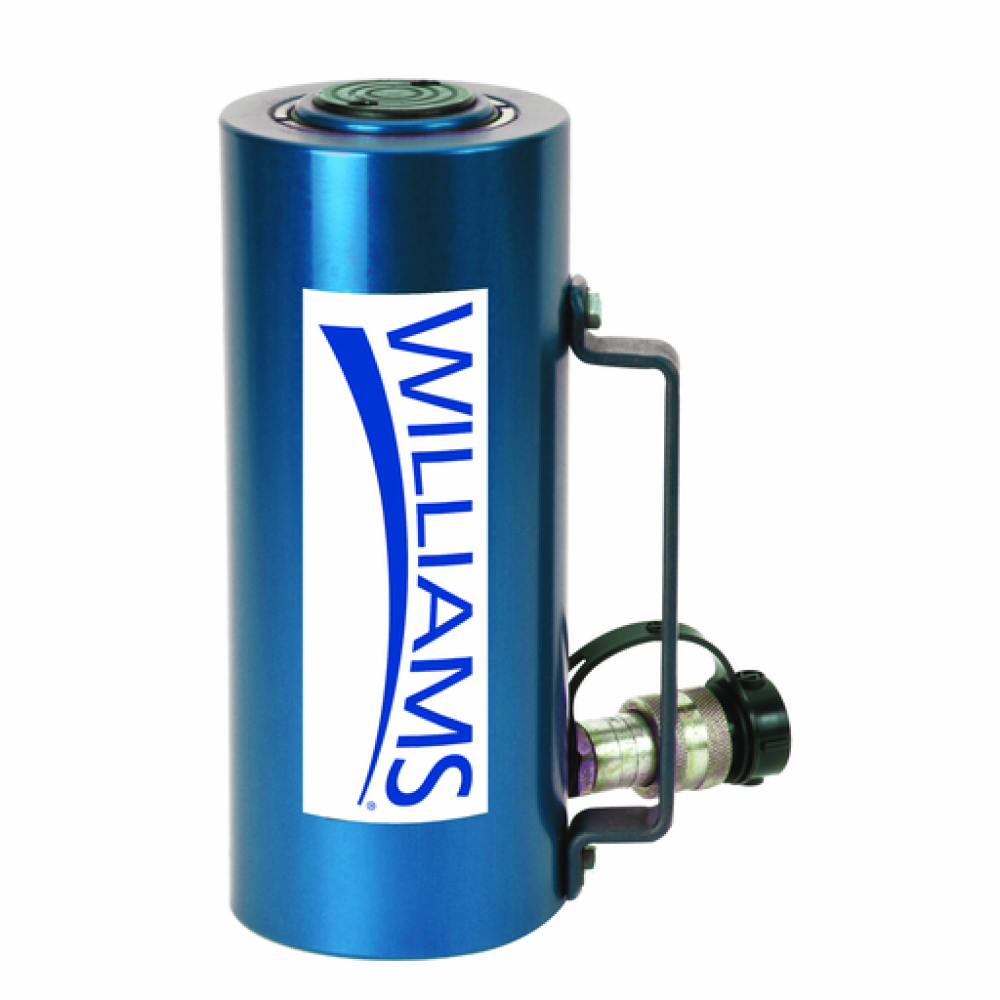

![100 Ton Aluminum Cylinder 10" Stroke](/vendors/7807/large/173b536ef19fd631001d2513611e59aa8d554117-large.png "100 Ton Aluminum Cylinder 10" Stroke")
100 Ton Aluminum Cylinder 10" Stroke
Call For Price
- Part Number: JHW6CA100T10
- UPC: 00662459946270
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
100 Ton Aluminum Cylinder 10" Stroke
Specifications
Details
Industrial Category:
Hydraulics
Industrial Subcategory:
Hydraulic System Components
Industrial Subtype:
High Pressure Hydraulic Cylinders
Actuation:
Single Acting
Body Material:
Aluminum
Country of Origin:
Taiwan
Cylinder Capacity, tons:
100
Cylinder Effective Area (in2):
20.7
Dimension A, Collapsed Height (inches):
14.5
Dimension B, Extended Height (inches):
24.5
Dimension C, Cylinder Bore Diameter, inches:
5.1
Dimension D, Outside Diameter, inches:
8
Dimension E, Plunger Diameter, inches:
4.3
Dimension F, Saddle Diameter, inches:
3.5
Dimension G, Base to Inlet Port, inches:
1.5
Internal Pressure at Capacity, psi:
9662
OG1 Page:
396
Oil Capacity (in3):
207
Stroke, inches:
10
Warranty:
Limited warranty; free from defects in workmanship and materials
Weight, lbs:
68
Other Details
Convenient carry handle
Hard anodized aluminum piston rod provides extra protection against corrosion and wear
Lightweight aluminum alloy construction
Maximum working pressure: 10,000 psi / 700 bar
Up to 60 percent lighter than comparable tonnage steel rams
