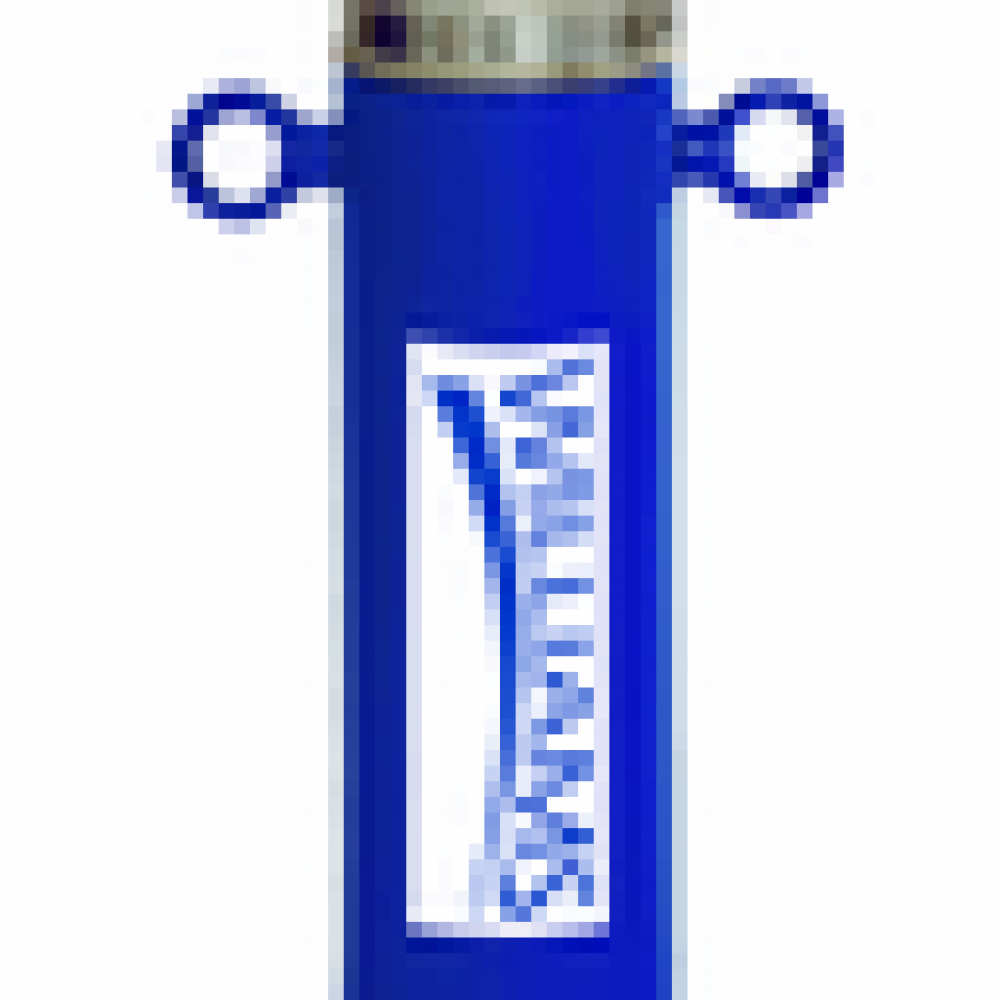

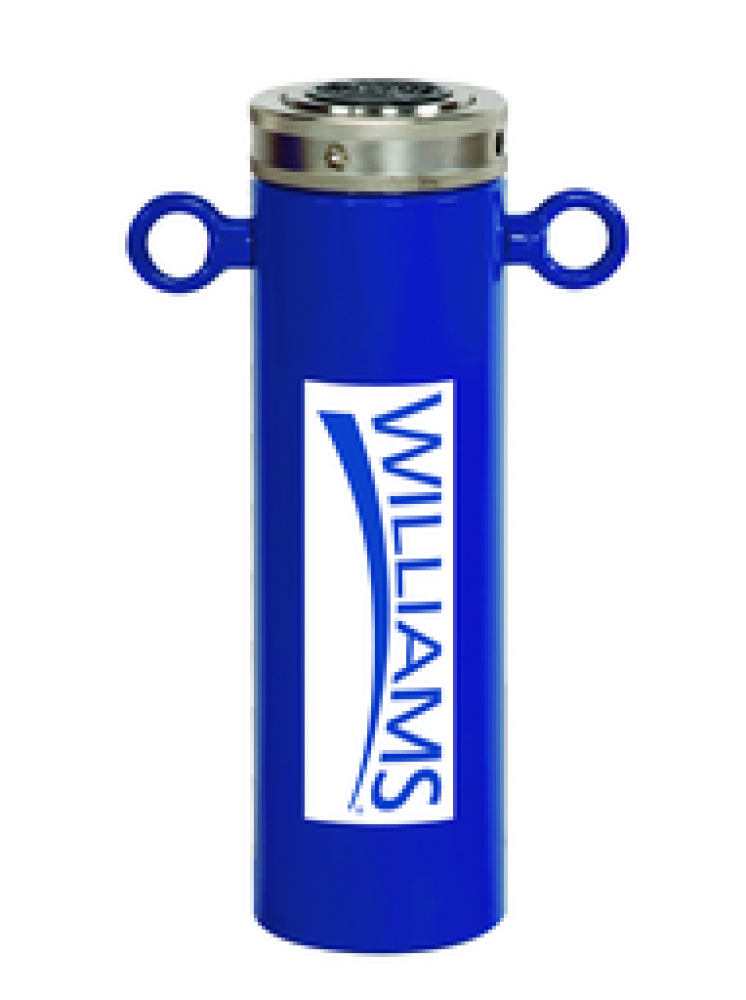

![100 Ton Locking Nut Cylinder 12" Stoke](/vendors/7807/large/979474db3c4666e78e21915c703dfa9f5df955a0-large.png "100 Ton Locking Nut Cylinder 12" Stoke")
100 Ton Locking Nut Cylinder 12" Stoke
Call For Price
- Part Number: JHW6CN100T12
- UPC: 00662459946171
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
100 Ton Locking Nut Cylinder 12" Stoke
Specifications
Details
Industrial Category:
Hydraulics
Industrial Subcategory:
Hydraulic System Components
Industrial Subtype:
High Pressure Hydraulic Cylinders
Actuation:
Single Acting
Body Material:
Steel
Country of Origin:
Taiwan
Cylinder Capacity, tons:
100
Cylinder Effective Area (in2):
20.57
Dimension A, Collapsed Height (inches):
17.2
Dimension B, Extended Height (inches):
29
Dimension C, Cylinder Bore Diameter, inches:
5.1
Dimension D, Outside Diameter, inches:
6.5
Dimension E, Plunger Outside Thread:
Tw130-4N
Dimension F, Saddle Diameter, inches:
2.8
Dimension G1, Depth of Plunger Hole, inches:
0.08
Dimension H, Lock Nut Length, inches:
1.8
Dimension I, Base to Inlet Port, inches:
1.1
OG1 Page:
395
Oil Capacity (in3):
242.95
Saddle Protrusion from Plunger, G2, inches:
0.51
Stroke, inches:
11.81
Warranty:
Limited warranty; free from defects in workmanship and materials
Weight, lbs:
159.6
Other Details
Designed to support load for extended periods without hydraulic pressure
Ideal for lifting and holding loads
Load return
Maximum working pressure: 10,000 psi / 700 bar
Overflow port prevents cylinders from over travel
Single acting cylinder with mechanical safety lock nut
Solid steel cylinder body
