![30 Ton Single Acting Cylinders 6.13" Stroke](/vendors/7807/large/b6bde956796e3049a95ba331ca391161480571fc-large.png "30 Ton Single Acting Cylinders 6.13" Stroke")

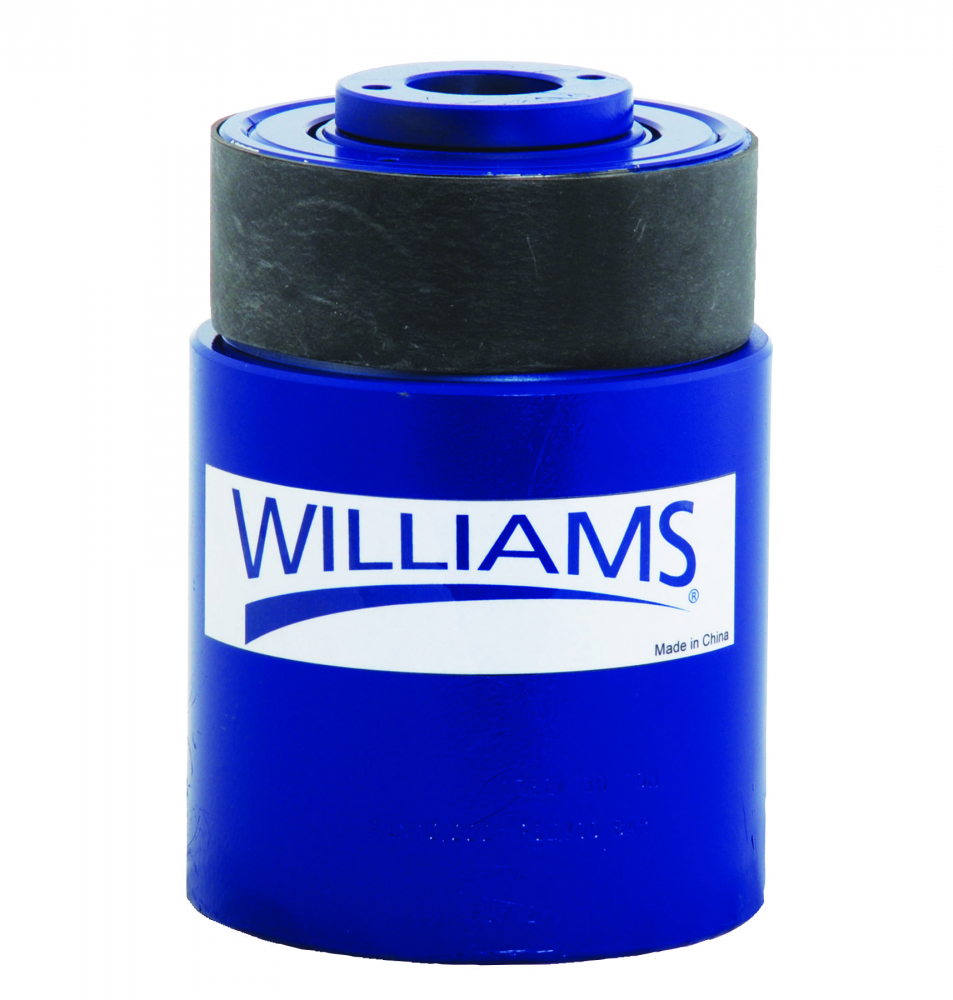

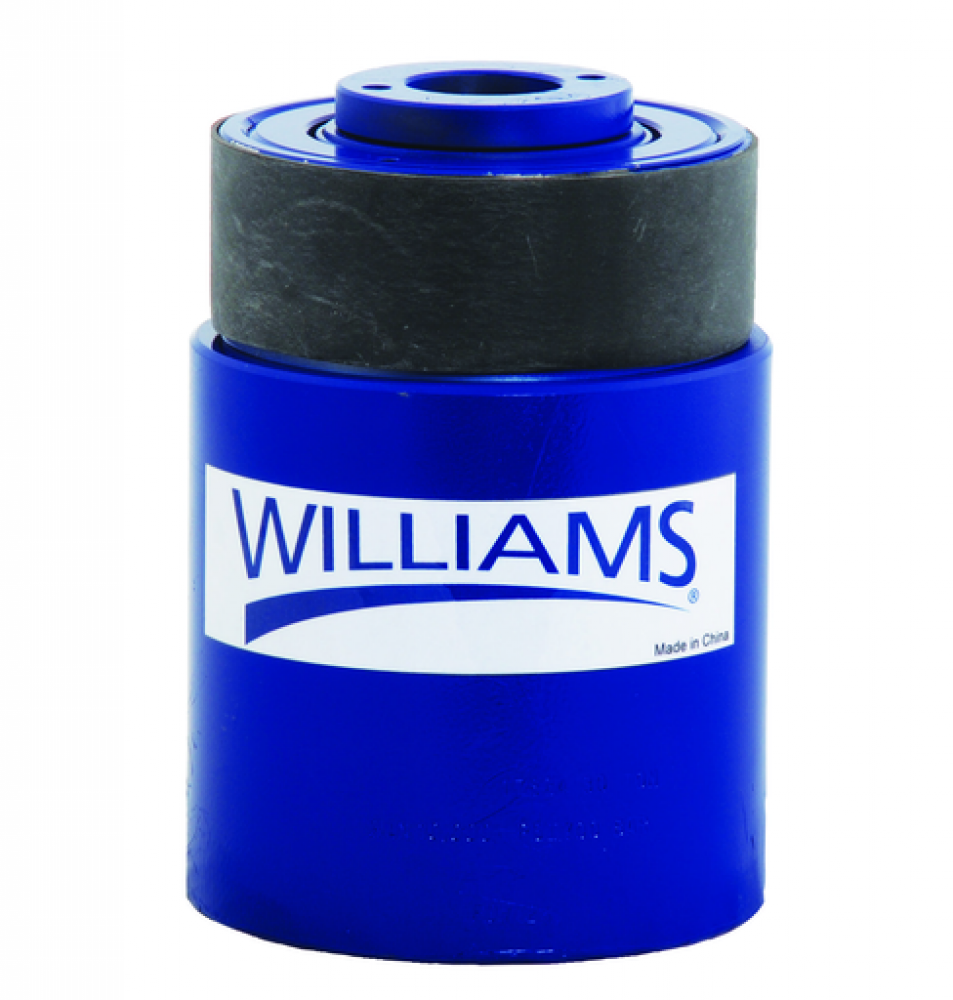

30 Ton Single Acting Cylinders 6.13" Stroke
Call For Price
- Part Number: JHW6CH30T06
- UPC: 00662459923028
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
30 Ton Single Acting Cylinders 6.13" Stroke
Specifications
Details
Industrial Category:
Hydraulics
Industrial Subcategory:
Hydraulic System Components
Industrial Subtype:
High Pressure Hydraulic Cylinders
Actuation:
Single Acting
Body Material:
Steel
Country of Origin:
Taiwan
Cylinder Capacity, tons:
30
Cylinder Effective Area (in2):
6.32
Dimension A, Min. Height, inches:
13.02
Dimension B, Max. Height, (inches):
19.13
Dimension C, Plunger ID, inches:
1.311
Dimension D, Outside Diameter, inches:
4.5
Dimension E, Plunger Outside Diameter, inches:
2.48
Dimension G, Base to Inlet Port, inches:
0.81
Dimension H, Collar Thread Diameter, inches:
4-1/2 -12
Dimension J, Plunger Internal Thread, inches:
1-13/16''-16UN
Dimension K, Internal Thread Length, inches:
0.87
Dimension L, Collar Thread Length, inches:
1.75
Dimension Z, Base Mounting Hole, Thread Depth:
0.55
OG1 Page:
399
Oil Capacity (in3):
38.67
Pressure at Capacity, psi:
9488
Stroke, inches:
6.11
Warranty:
Limited warranty; free from defects in workmanship and materials
Weights, lbs:
43
Other Details
6 standard models
Collar thread protector
Dual wipers help prevent contamination
Heavy duty compression spring
High flow coupler with dust cap
Ideal for some pulling and pushing applications
