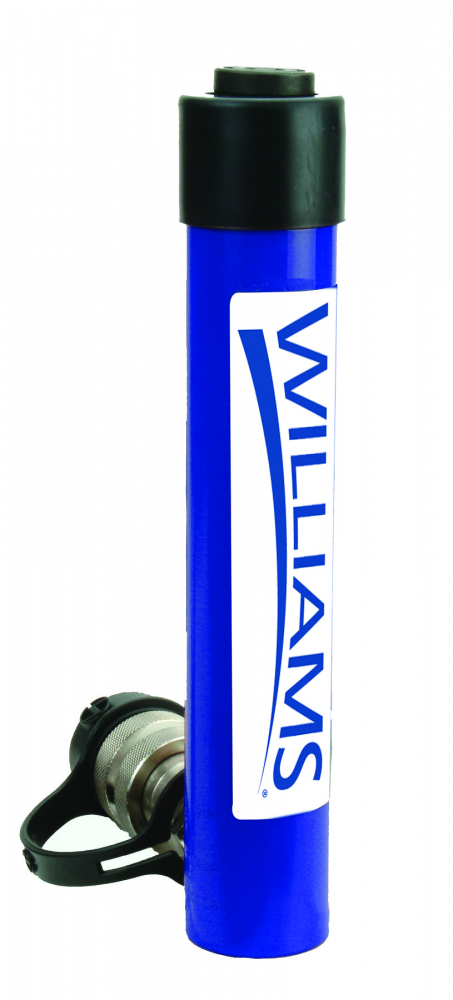

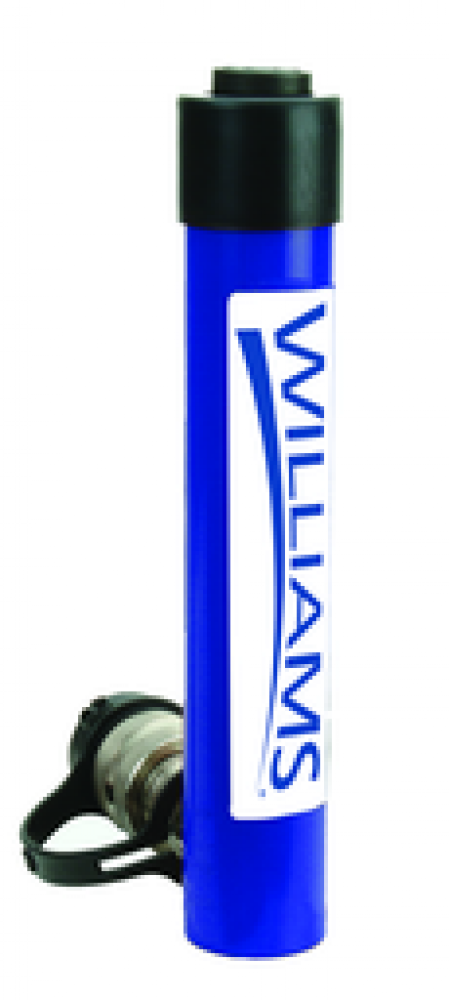

5 Ton Single Acting Cylinders 5'' Stroke
Call For Price
- Part Number: JHW6C05T05
- UPC: 00662459922625
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
5 Ton Single Acting Cylinders 5'' Stroke
Specifications
Details
Industrial Category:
Hydraulics
Industrial Subcategory:
Hydraulic System Components
Industrial Subtype:
High Pressure Hydraulic Cylinders
Actuation:
Single Acting
Base Mounting Hole, Thread Depth, inches:
0.55
Base Mounting Hole, Thread, inches:
1/4'' - 20UNC
Base to Inlet Port, inches:
0.79
Body Material:
Steel
Collar Thread (inches):
1-1/2 -16
Collar Thread Length (inches):
1.1
Country of Origin:
Taiwan
Cylinder Capacity, tons:
5
Cylinder Effective Area (in2):
1
Dimension A, Collapsed Height (inches):
8.7
Dimension B, Extended Height (inches):
59.5
Dimension C, Cylinder Bore Diameter, inches:
1.13
Dimension D, Outside Diameter, inches:
1.5
Dimension E, Plunger Diameter, inches:
1
Dimension F, Saddle Diameter, inches:
0.98
OG1 Page:
390
Oil Capacity (in3):
5.08
Plunger Internal Thread, inches:
3/4''-16UNF
Plunger Thread Length, inches:
0.63
Pressure at Capacity, psi:
10000
Stroke, inches:
5.08
Warranty:
Limited warranty; free from defects in workmanship and materials
Other Details
High flow 3/8" NPTF couplers, collar thread protector
High strength steel construction from gun drilled solid bar
Ideal for lifting and pressing
Industrial hard chrome plated ram helps prevent rust and corrosion
Maximum working pressure: 10,000 psi / 700 bar
One piece high grade alloy bearing for side load protection and long life
Polyurethane cup seal provides optimum performance
Rod wiper seals out dirt and contamination, collar fixture threads, two base mounting holes on most models
Solid steel cylinder body and heavy-duty return spring provides quicker retraction
