![55 Ton Double-Act Cylinder 13" Stroke](/vendors/7807/large/ae17034bd6419ec83c0f118663f70168a428a3ca-large.png "55 Ton Double-Act Cylinder 13" Stroke")

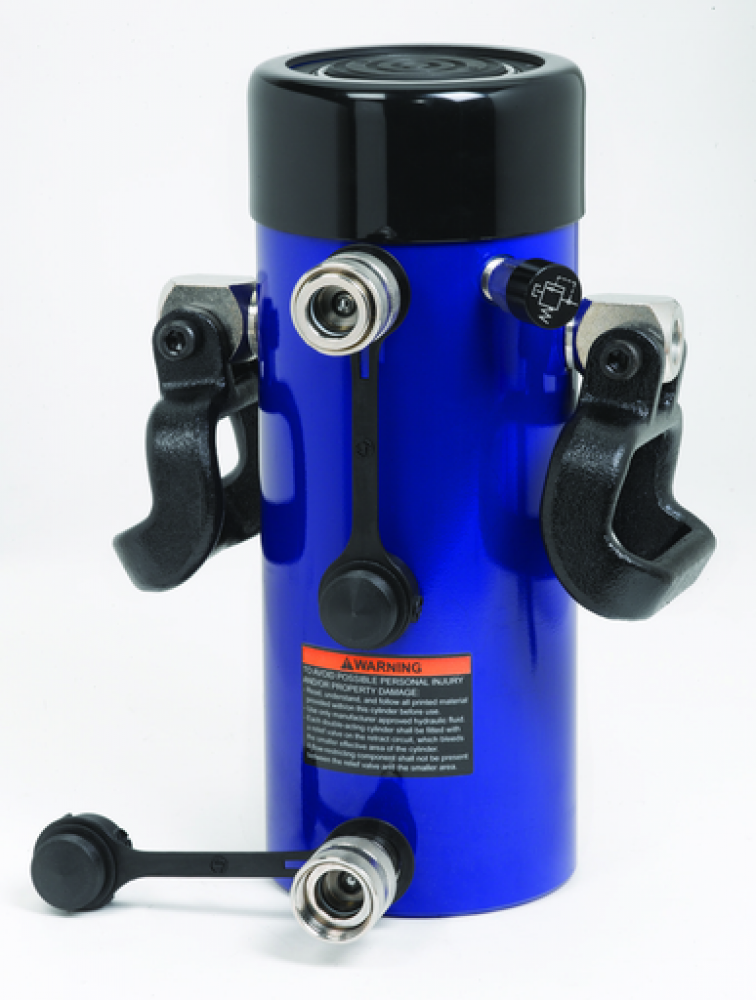

55 Ton Double-Act Cylinder 13" Stroke
Call For Price
- Part Number: JHW6CD55T13
- UPC: 00662459946089
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
55 Ton Double-Act Cylinder 13" Stroke
Specifications
Details
Industrial Category:
Hydraulics
Industrial Subcategory:
Hydraulic System Components
Industrial Subtype:
High Pressure Hydraulic Cylinders
Actuation:
Double Acting
Body Material:
Steel
Country of Origin:
Taiwan
Cylinder Capacity, tons:
55
Cylinder Effective Area, Pull (in2):
3.19
Cylinder Effective Area, Push (in2):
10.99
Dimension A, Collapsed Height (inches):
20.04
Dimension B, Extended Height (inches):
33.23
Dimension C, Cylinder Bore Diameter, inches:
3.74
Dimension D, Outside Diameter, inches:
5
Dimension E, Plunger Diameter, inches:
3.14
Dimension F, Saddle Diameter, inches:
2.76
Dimension G, Base to Adv. Port, inches:
1.14
Dimension H, Top to Return Port, inches:
2.87
Dimension K, Plunger Thread Length, inches:
0.98
Dimension L, Collar Thread, inches:
5/12 inches
Dimension M, Collar Thread Length, inches:
1.73
Maximum Cylinder Capacity, Pull, ton:
16.2
Maximum Cylinder Capacity, Push, ton:
55.7
OG1 Page:
394
Oil Capacity, Pull, inches:
42.11
Oil Capacity, Push in3:
144.94
Stroke, inches:
13.19
Warranty:
Limited warranty; free from defects in workmanship and materials
Weight, lbs:
104
Other Details
High flow 3/8" NPTF couplers
High strength steel construction from gun drilled solid bar
Ideal for pushing and pulling
Maximum working pressure: 10,000 psi / 700 bar
One piece high grade alloy bearing for side load protection and long life
Rod wiper seals out dirt and contamination
